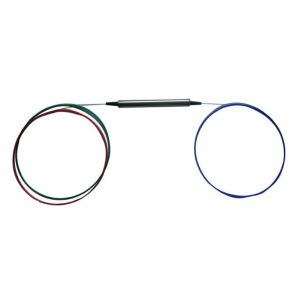

3 porrts Optical Circulator

Kewei fiber's Three-port Optical Circulator allows light to travel in only one direction. A signal entering to Port 1 will exit Port 2 with minimal loss, while a signal entering Port 2 will exit Port 3 with minimal loss. Light entering port 2 experiences a large amount of loss at port 1, and light entering port 3 experiences a large amount of loss at ports 2 and 1. Optical circulators are non-reciprocal devices. This means that any changes in the properties of the light caused by passing through the device are not reversed by traveling in the opposite direction.
Quantity:
sharethis sharing button

Features
1.Low insertion loss
2.Wide band high isolation
3.Low PDL
4.Compact in-line package
5.High stability and reliability
6.Epoxy free optical path



Applications
1.CATV system
2.Telecommunication network system
3.Metro/Access networks
4.Optical amplifier
5.Wavelength add/drop
6.Dispersion compensation
7.Bi-Direction communication

Specification

Parameter

P Grade

A Grade

Configuration

Port 1 to Port2 to Port 3

Operation Wavelength(nm)

1470 to 1610

Insertion Loss(dB)

Typical

1

1.1

Maximum

1.2

1.3

Channel Peak Isolation(dB)

>50@1550nm

Channel Isolation(dB)

>40(1520nm~1580nm);>32(1470nm~1610nm)

Channel Cross Talk(dB)

>50

Polarization Dependent Loss(dB)

<0.20

Polarization Mode Dispersion(ps)

<0.1

Return Loss(dB)

>50

Power Handling(mW)

300

Operating Temperature(°C)

0~+70

Storage Temperature(°C)

-40~+85

Dimensions(mm)

?5.5 x L50

Above specification are for device without connector.

Ordering Information

3ports Optical Circulator

Port

Wavlength

Grade

Fiber Type

Fiber Length

In/Out Connector

3=3 Port

CL=C+L Band 1525~1610nm

P=P Grade

A=A Grade

1=Bare

fiber

2=900um

loose tube

1=1m

2=2m

0=None

1=FC/APC

2=FC/PC

3=SC/APC

4=SC/PC

5=ST

6=LC

S=Specify
