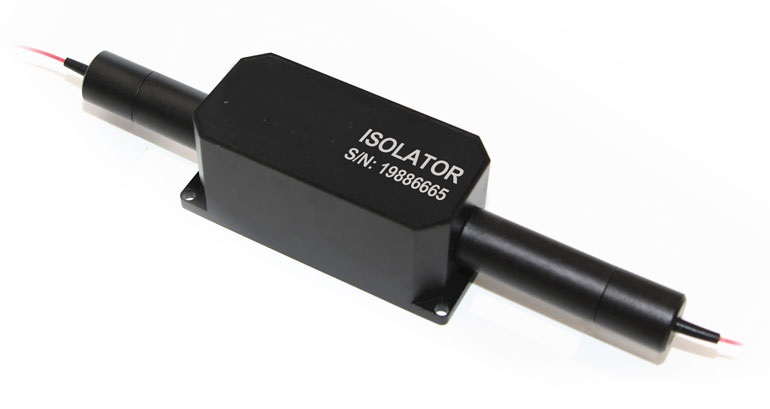

polarization insensitive optical isolator is a device, which allows the light to transmit through the passive route from input to output, while blocking the reversed direction.
The high power optical isolator (polarization-independent fiber optic isolators, 1064/1053/1030/980 nm) is customizable, and the above specifications are subject to change without notice.
For device with connectors, IL is 0.3dB higher, RL is 5.0dB lower.
Bare fiber should not support the weight of the connector. So that if any connectors needed, for the pigtail type it’s better to choose the 900μm loose tube jacket instead of the 250μm bare fiber.
For CW high-power optical interconnection, we recommend fusion splice without connectors.
For product customization or special requirements, please contact Lfiber’s sales department for availability.
FEATURES OF HIGH POWER OPTICAL ISOLATOR
Polarization Independent
Low Insertion Loss
High Isolation and Return Loss
High Reliability and Stability
APPLICATIONS OF HIGH POWER OPTICAL ISOLATOR
Fiber Amplifier
Fiber Laser
Testing Instruments
Mopa Fiber Laser
Notes:
The high power optical isolator (polarization-independent fiber optic isolators, 1064/1053/1030/980 nm) is customizable, and the above specifications are subject to change without notice.
For device with connectors, IL is 0.3dB higher, RL is 5.0dB lower.
Bare fiber should not support the weight of the connector. So that if any connectors needed, for the pigtail type it’s better to choose the 900μm loose tube jacket instead of the 250μm bare fiber.
For CW high-power optical interconnection, we recommend fusion splice without connectors.
For product customization or special requirements, please contact Lfiber’s sales department for availability.
