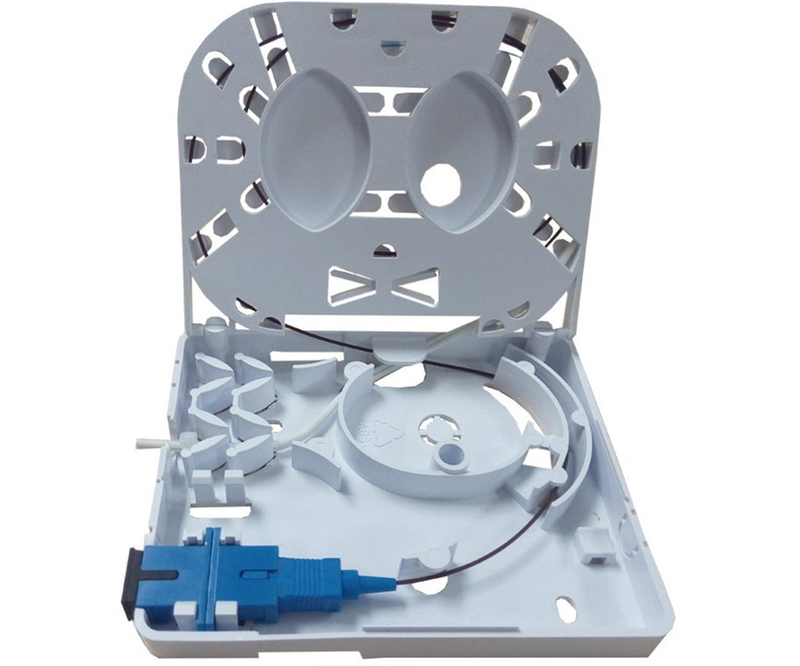

1. Description: 1.It is used for different kinds of modules and applied to the working area subsystem. 2.It uses embedded surface frame, easy to install and disassemble 3.With application of fiber SC/LC simplex, duplex and other different environment installed plate or flush plate. 4. Cable management can be connected without cutting(with express port) 5.All modules are free of welding. 2.Specification Item Technical data Application 3.0 x 2.0 mm drop cable or indoor cable Fiber diameter 125μm ( 652 & 657 ) Tight cladding diameter 250μm & 900μm Mode of application Single mode & duplex mode Tensile strength >50 N End-use temperature -40~+85℃ Adaptor SC & LC Insertion loss ≤0.2dB(1310nm & 1550nm) output 1 3,Configuration table: Model Size Max Capacity Installation Size A*B*C(mm) SC LC D (mm) OTB-2F 105*82*21 2 4 81 4. Installation: Wall-mounted installation Drill 2 holes over the wall based on the size in table 1,place the expansion boltΦ5.5*30,place the box to match up the holes and use bolt to fasten
