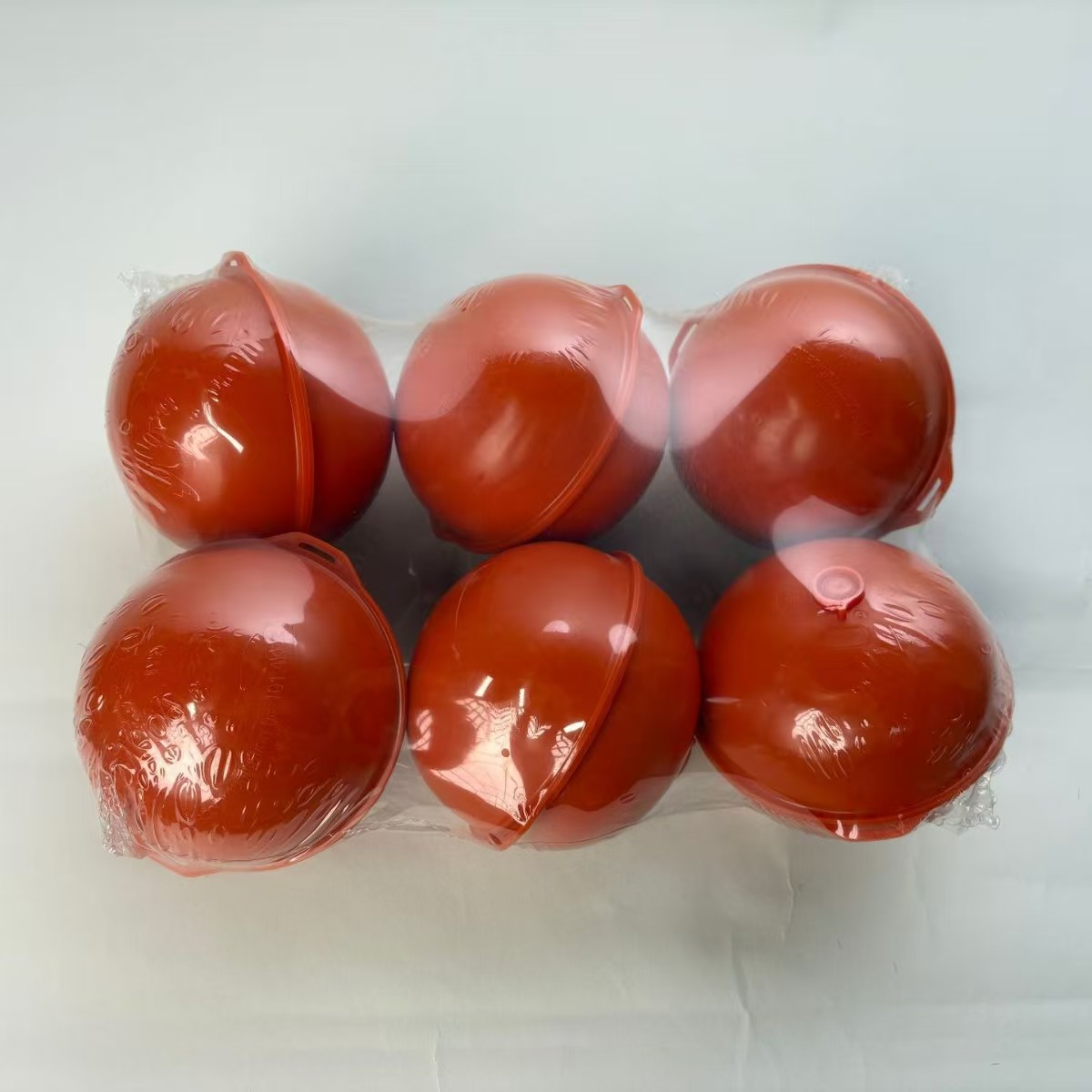

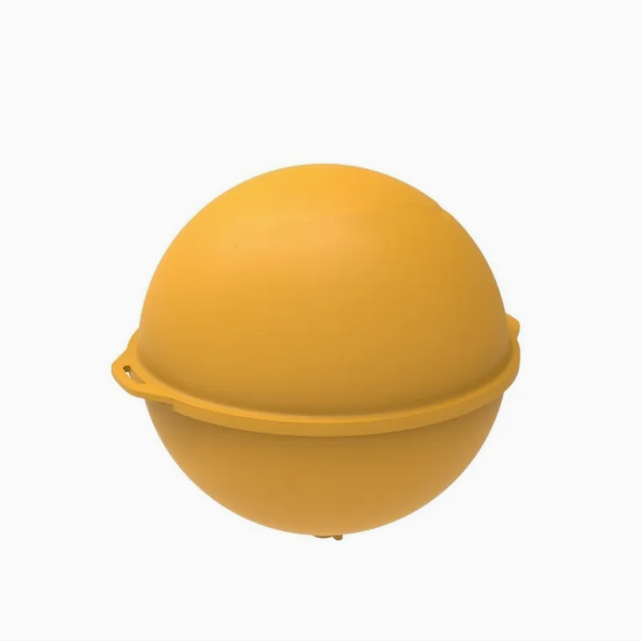

Electronic Ball Marker Underground Locator Ball

9

Electronic Ball Marker Underground Locator Ball

The Telecom Marker Ball is uses HDPE packaging and has the characteristics of chemical corrosion resistance and pressure resistance. It can be selected as an underground pipeline positioning electronic marker without ID version or with ID version. The RF Marker Ball supports multiple industry applications and multiple working frequency options, such as: Telecom (101.4kHZ) etc.

Model:
101.4kHZ
Brand:
Kewei
Code:
KWMB1014

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Advantages

- No harmful fluid inside.

- Detection range up to <1.5m.

- High location precision marker ball.

- For manholes or direct buried installation.

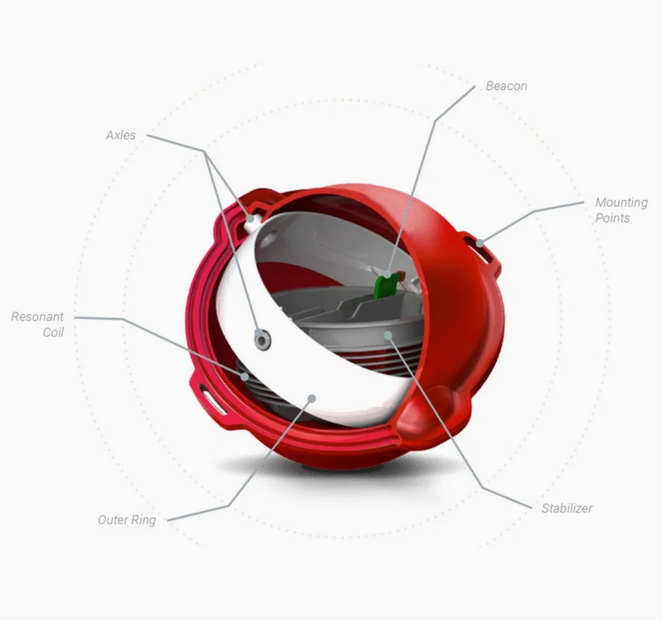

- Self orientation RF reflector ensures best detection range and accuracy.

- The induction coil is suspended on the built-in antifreeze and can be kept horizontally upward.

Construction	Description
Product Type	ID version,EX.ID version (Optional)
Frequency	101.4kHZ
Identification Depth	1.5m
Maximum Detectable Depth	1.5 m (EX.ID version)
ID Reading Depth	>1.2 m (ID version)
Diameter	Φ120mm丨4.724in
Height	115mm丨4.528in
Material	HDPE
Weight	0.4kg
Protection Level	IP68
Marker Ball Distance	Maximum distance 50 m
Storage Temperature	-40℃ to +70 ℃
Operating Temperature	-15℃ to +60 ℃
Drop Test	Can withstand a 1.5m drop to the concrete floor
Stress Resistance	Withstands 400Kg pressure, the ball has no permanent damage, no cracks and leaks, and no damage to its electronic tag function
Detector Compatibility	ID version: Only ED8000 detector can read EX.ID version: ED8000 or other detectors with the same frequency (for example: 3M Dynatel series) can read
