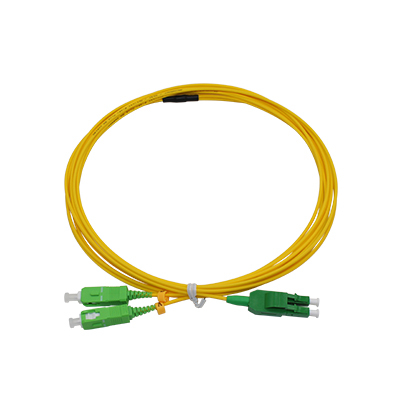

high density Uniboot Fiber Optic Patch Cable

Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices. The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths. Patch Cords include simplex, duplex and Multi-fibers assemblies.

As the networking environment of today becomes increasingly dependent on high speed and high density solutions, effective cable management is a real issue. The key concern is how to manage more cable in a smaller amount of space.
  • uniboot

  • Kewei

Quantity:
sharethis sharing button

Optical Specification

Connector

LC

Polishing SM/UPC MM/PC SM/APC
Insertion Loss(max) ≤0.30dB ≤0.25dB ≤0.30dB
Return Loss(min) ≥50 dB ≥35 dB ≥60 dB
Tensile Strength >70N
Durability <0.20 dB typical change, 1000 matings
Repeatability ≤0.1dB
Storage , Operating Temperature [°C] -40~+85

Geometric Specification (For special request)



PC End-face

APC End-face

Radius of Curvature SC/FC/ST

10~25 mm

5~12 mm

LC/MU

7~25 mm

5~15 mm

Apex Offset ≤50 um
Fiber Spherical Height +/- 50 nm
Angular Offset        —— 8°± 0.2°
  • Clean and Scratch-Free End Face
  • Proportional geometric test is applied to the normal production.
  • 100% interferometer check is available under special requirement.

Physical Information: Length tolerance: 0-5M: +5cm/-0cm ;  5-100m:+10cm/-0cm

Features:

  • Cost effective
  • Full duplex in a single 3mm diameter cable.
  • Available in OM3, OM4, OS1/OS2 (ITU-T G.652D or G.657A1) or ITU-T G.657A2 cabled fiber
  • types Available with LSZH, Plenum and riser rated cable
  • Save 50%of space in cabinets and cable ways
  • Protects network polarity
  • Clean and Scratch-Free End Face
  • Proportional geometric test is applied to the normal production.
  • 100%interferometer check is available under special requirement

Application:

Fiber CATV, Fiber Cabling system, LAN,FTTH
