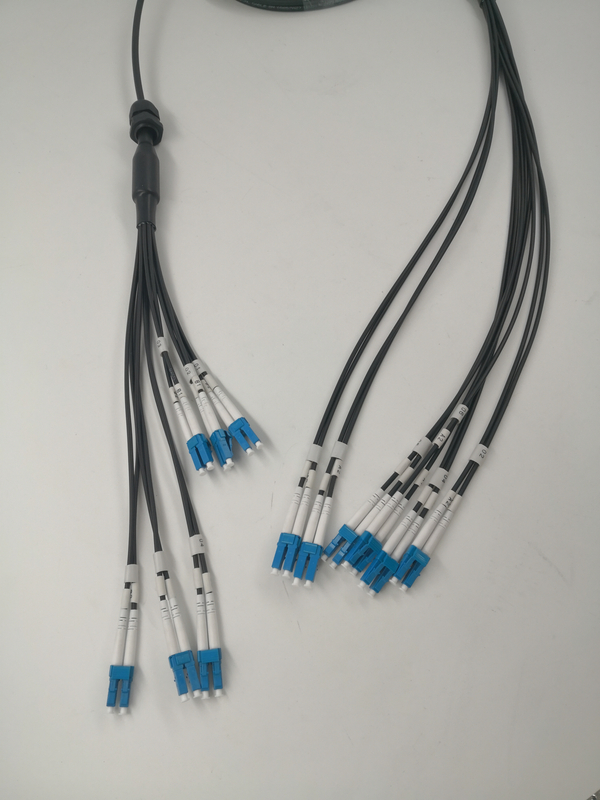

Multicores 5.0mm 7.0mm Outdoor Armored cable assembly 12F SM-G657A 6set Duplex LC connector patch cable

9

Multicores 5.0mm 7.0mm Outdoor Armored cable assembly 12F SM-G657A 6set Duplex LC connector patch cable

Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices. The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths. Patch Cords include simplex, duplex and Multi-fibers assemblies.

As the networking environment of today becomes increasingly dependent on high speed and high density solutions, effective cable management is a real issue. The key concern is how to manage more cable in a smaller amount of space.

Model:
multicores patch cord
Brand:
Kewei

Quantity:




Inquire Add to Basket

Product Description

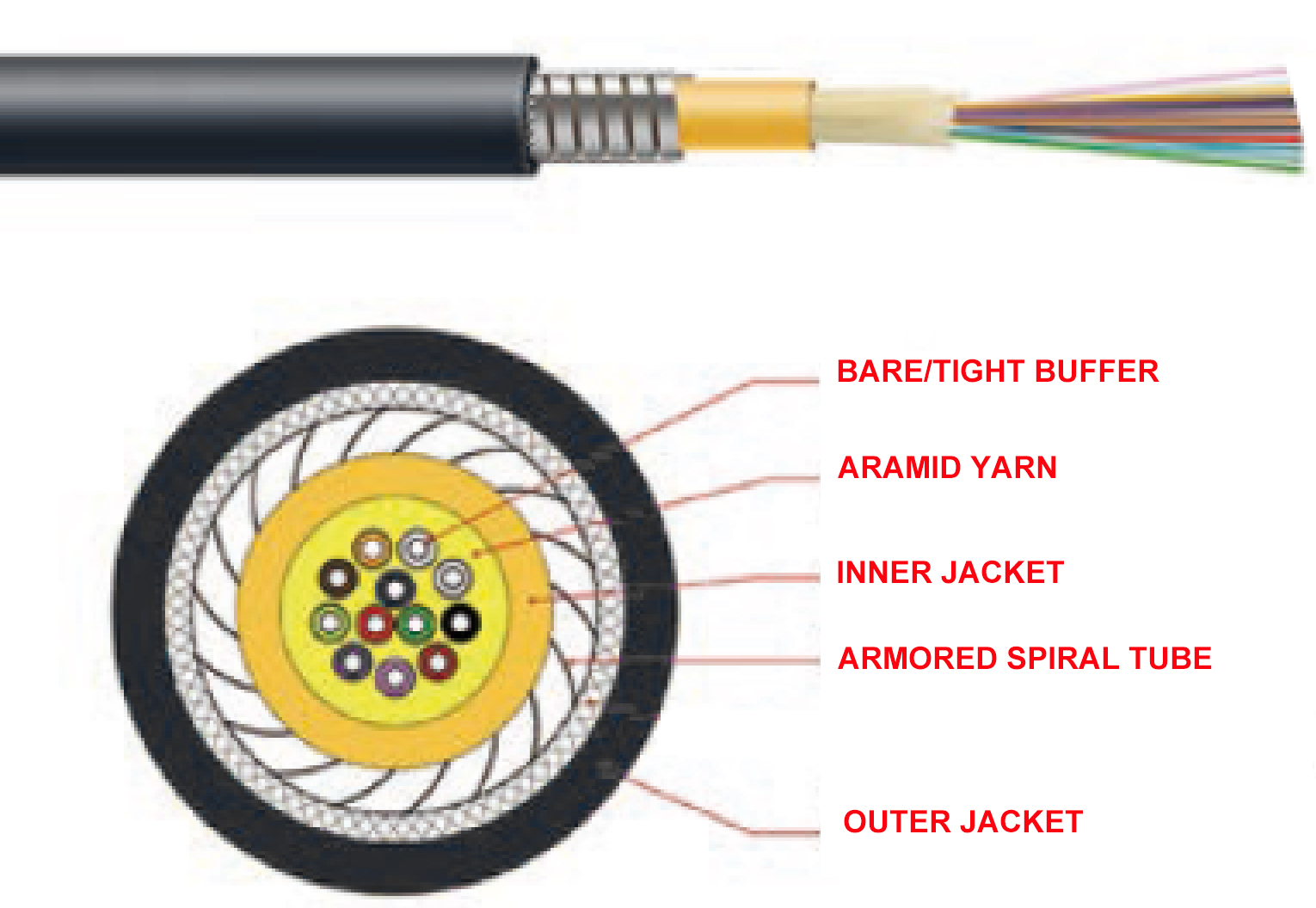

 IP68 Waterproof cable assembly with dual jacket high tension, armored protected for harsh environment . Both ends with rubber caps for dust free. It's high quality and best choice for different situations!

 From 2-288cores with armored protected. Dual jacket for high tension!

Optical Specification

Connector	LC,SC,ST,FC,MTRJ,MU
Polishing	SM/UPC	MM/PC	SM/APC
Insertion Loss(max)	≤0.30dB	≤0.25dB	≤0.30dB
Return Loss(min)	≥50 dB	≥35 dB	≥60 dB
Tensile Strength	>70N
Durability	<0.20 dB typical change, 1000 matings
Repeatability	≤0.1dB
Storage , Operating Temperature [°C]	-40~+85

Geometric Specification (For special request)

		PC End-face	APC End-face
Radius of Curvature	SC/FC/ST	10~25 mm	5~12 mm
	LC/MU	7~25 mm	5~15 mm
Apex Offset		≤50 um
Fiber Spherical Height		+/- 50 nm
Angular Offset		——	8°± 0.2°

Clean and Scratch-Free End Face
Proportional geometric test is applied to the normal production.
100% interferometer check is available under special requirement.

Physical Information: Length tolerance: 0-5M: +5cm/-0cm ; 5-100m:+10cm/-0cm

Features:

Cost effective
Full duplex in a single 3mm diameter cable.
Available in OM3, OM4, OS1/OS2 (ITU-T G.652D or G.657A1) or ITU-T G.657A2 cabled fiber
types Available with LSZH, Plenum and riser rated cable
Save 50%of space in cabinets and cable ways
Protects network polarity
Clean and Scratch-Free End Face
Proportional geometric test is applied to the normal production.
100%interferometer check is available under special requirement

Application:

Fiber CATV, Fiber Cabling system, LAN,FTTH
