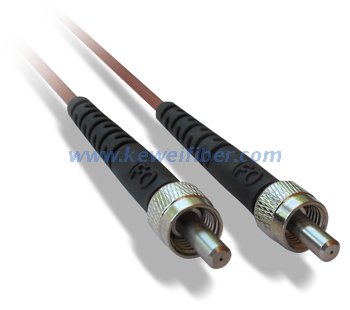

SMA Simplex Fiber Optic Patch Cord

Fiber Optic Patch Cord is an optical cable, used to connect optical device to another for signal routing. Each end of the cable is attached to a connector, so the cord may be plugged in. Pigtail is a cable with one connector. Types of connectors may vary widely, FC, SC, ST, and etc.
High performance optical pigtails &patch cords are a defining factor in ensuring any network performs to the highest level. HNK offers an extensive range of optical pigtails for use in FTTX, telecommunications, data communications and CATV applications.
Pigtails & patch cords can be supplied in a variety of lengths, colors and with a variety of different connector types. Different fiber types and cable diameters are also available on request.

Quantity:
  • Kewei
Features:
  • Meet IEC, JIS, Bellcore GR-326 performance requirements
  • Guaranteed quality.100% tested and inspected
  • Cable type: Indoor fiber 9/125um,50/125um,62.5/125um,OM3,OM4 with PVC or LSZH sheath. Simplex or Duplex, Cable diameter: 3.0mm,2.0mm and 0.9mm. Available in custom lengths
  • RoHs compliant.
Application:
  • Telecommunication networks
  • CATV & LAN
  • Date networks
  • Passive Optical Networks


SMA Simplex Fiber Optic Patch Cord
Item Unit SM MM
PC UPC APC PC
Insertion loss dB ≤0.20
Max. Insertion loss dB ≤0.30
Repeatability dB ≤0.10
Changeability dB ≤0.20
Return loss dB ≥45 ≥50 ≥60 ≥35
Operation Temperature C -40~+85
Storage temperature C -40~+85
Fiber type um 9/125 50/125,62.5/125,OM3,OM4
Core number
Single or dual fiber,4,6,8,12,24 cores
Durability
>1000times
