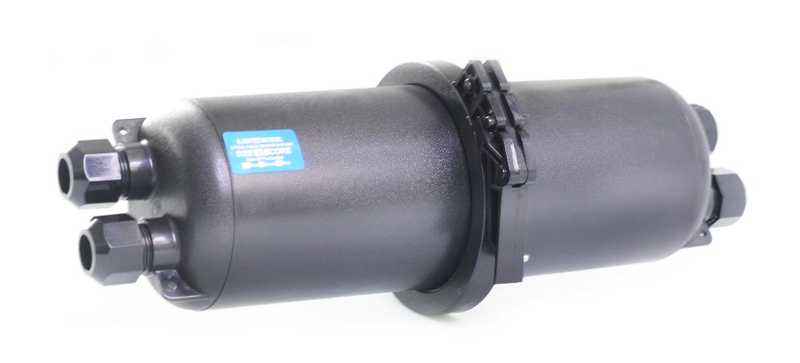

Plastic fiber optic splice closure

  • KW-D014

  • Kewei

Quantity:
sharethis sharing button
Product Description

Feature:
1. For aerial,buried and pipe wall people use wells
2. Ring using a special material that can be repeatedly opened,re-use
3. Splice tray easy to use page design
4. Quick way to make use of open sealed maintenance easier
5. Valve and grounding devices can be installed
6. Advanced internal structure design
7. Easy to re-enter, it never requires re-entry tool it
Scope:
The Scope of application is :aerial,underground,pipeline,handhole.The ambient temperature ranges from -40 to 65℃.

Specifications:

Size: mm  L×W×H
Cable ports


Cable Diameter

Max. Capacity
Core capacity per tray
460×190
4


φ17×4

Bunchy:96
Ribbon:144

Bunch:12-96(cores)
Ribbon:144(cores)

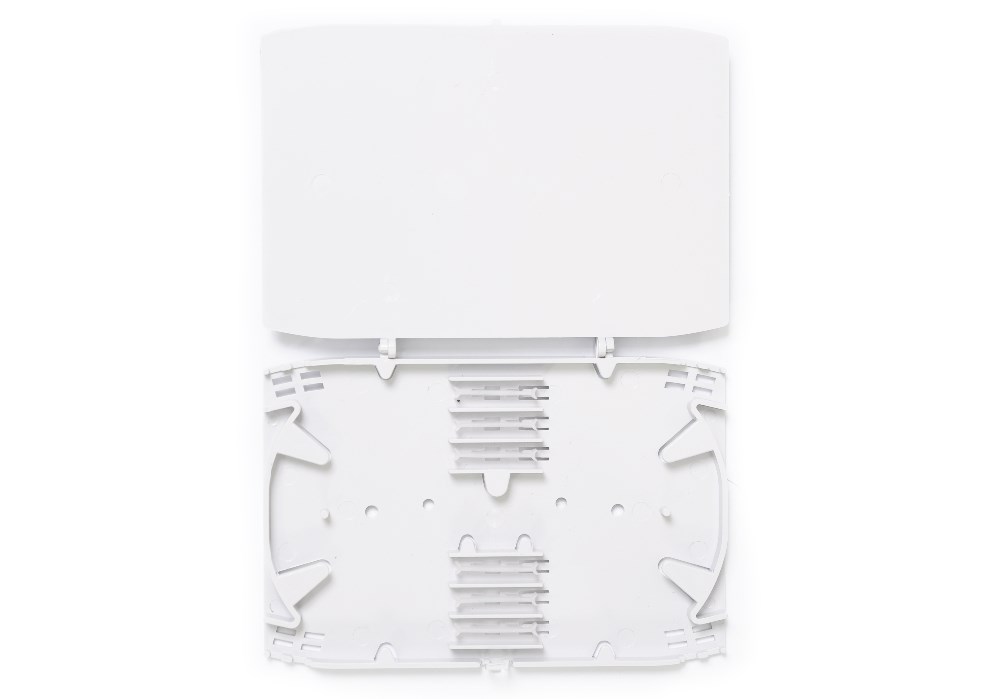

Trays:

Model No.
Capacity
Size: mm    L×W×H
FOST016
Bunchy
single:12 cores         double:24 cores
150×100×9
Ribbon
6 pieces

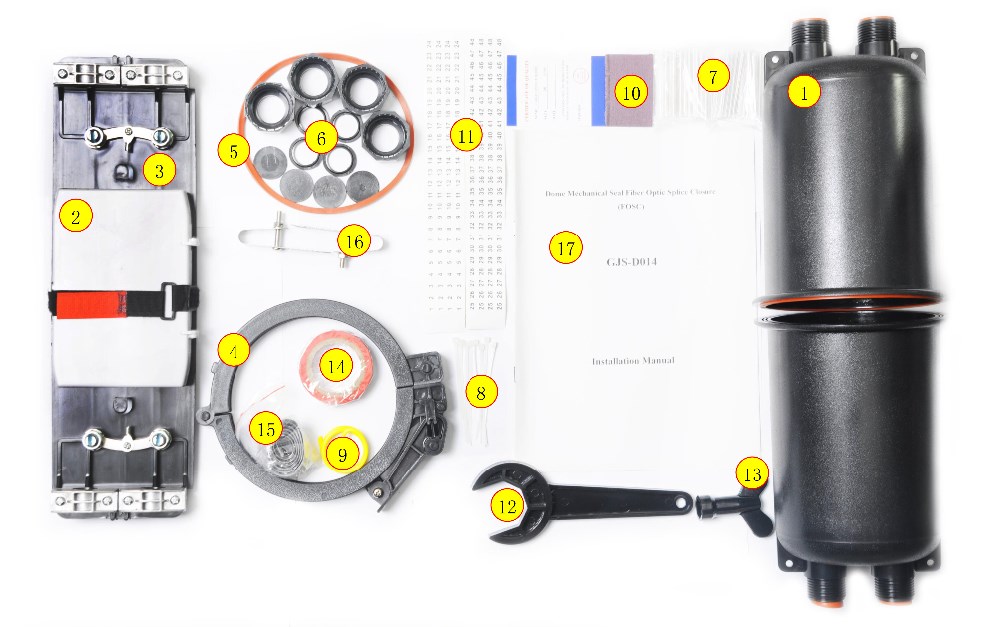

Configuration
Main Component
No.
Name of components
Quantity
Usage
Remarks
1
FOSC(cover)
1 set
Protecting fiber cable splices in whole
Internal diameter:230*150(mm)
2
Fiber optic

splice tray(FOST)
Max 4 trays (bunchy) or Max
4 trays (ribbon)
Fixing heat shrinkable protective
sleeve and holding fibers
Suitable for:
Bunchy:12,24(cores)
Ribbon:3(pieces)
3
Foundation
1 set
Fixing reinforced core of fiber cable and fiber optic splice tray(FOST)

  4
     Plastic hoop
              1 set
Fixing between FOSC cover and base

5
Seal fitting
1 set
Sealing between FOSC cover and FOSC bottom

 6
Seal rings for inlet/outlet ports
              4 pcs
For the inner seal of inlet/outlet ports;the diameter is 16.5mm

Main accessories and special tools
7
Heat shrinkable protective sleeve

Protecting fiber splices
Configuration as per capacity
8
Nylon tie

Fixing fiber with protective coat
Configuration as per capacity
9
Earthing wire
1 piece
Putting through between earthing device

10
Abrasive cloth
1 piece
Scratching fiber calbes

11
Labeling paper
1 piece
Labeling fiber

12
Wrench
1 piece
Installing and tightening nut(plastic) of inlet/outlet tube.

13
M10 Special wrench
1 piece
tightening nut of reinforced core

14
Seal tape
1 ring
Enlarging diameter of fiber cable which fits in with gasket ring.
Configuration as per specification
15
Insulation tape
1 ring
Enlarging diameter of fiber cable for easy fixing

16
Hanging hook
1 set
For aerial use

17
Instruction manual
1 piece
standard installation


Optional accessories
No.
Name of components
Quantity
Usage
Remarks
1
Pressure testing valve
1 set
After injecting air it is used for pressure testing and sealing testing
 Configuration as per requirement
2
Earthing deriving device
1 set
Deriving metallic components of fiber cable in the FOSC for earthing connection
Configuration as per requirement
3
Desiccant
1 bag
Put into FOSC before sealing for desiccating air.
Configuration as per requirement
4
Buffer tube
Decided by customers
Hitched to fibers and fixed with FOST,managing buffer.
Configuration as per requirement

Package:

No.
specification
Carton size(cm)
Capacity
N.W
Remarks
1
small size box
20×17×45.5
1pcs
1.95-2.4KG
Configuration as per weight
2
big size box
88×42×48
10pcs
19.5-24KG
Configuration as per weight
