Pipeline Fiber Optic Closure , Splitter Closure Fiber Optik

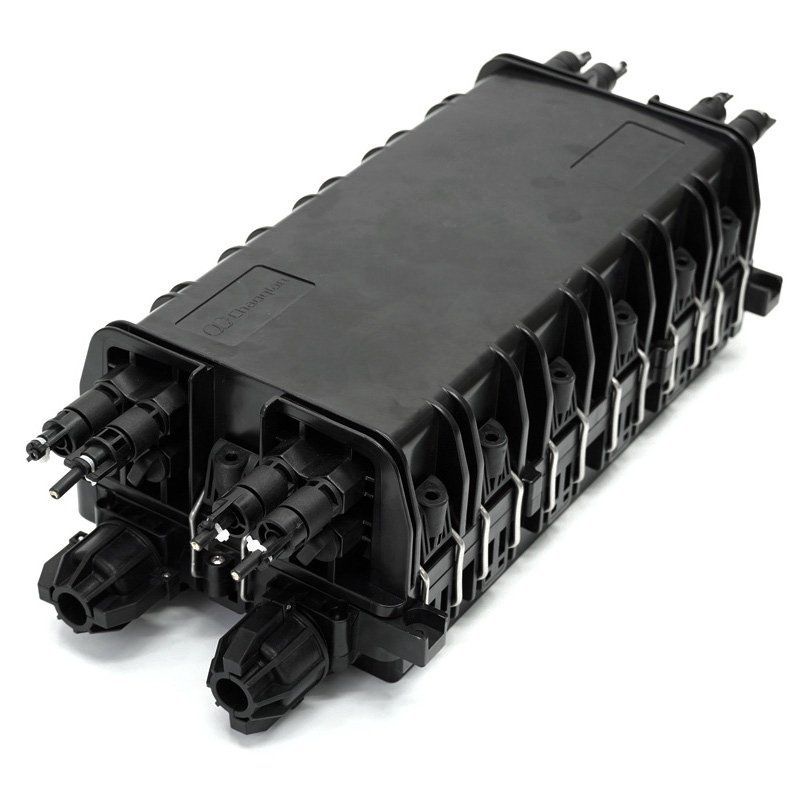

KWGPJ09-6809 series inline closures are versatile connection equipment, applicable to the fiber splicing, storage, distribution, and splitting, and can be employed for FTTH solutions
  • Clip type closure

  • KWGPJ09-6809

Quantity:
sharethis sharing button

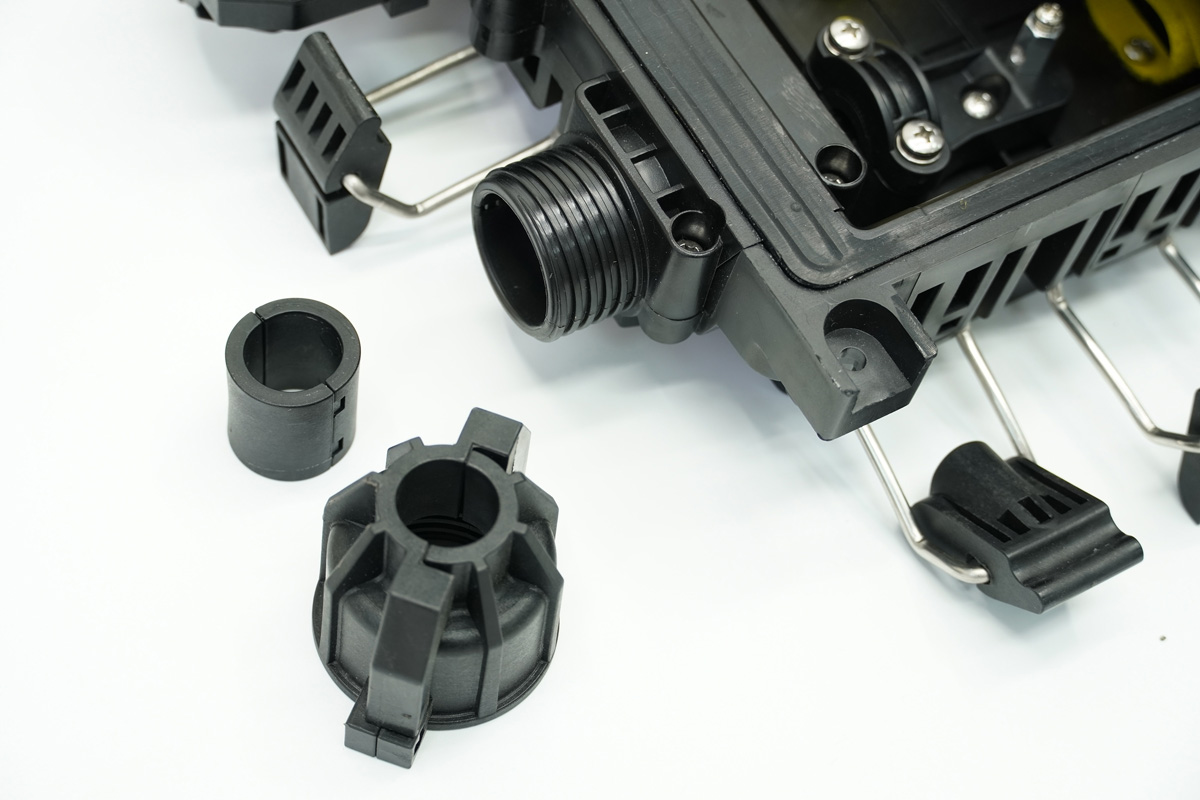

  • Ports: 2 inlets and 2 outlets, applicable to φ9-11 mm cables, and 16 pcs φ4-6 mm drop cables or bow-type cables.

  • Capacity: 24F/48F tray capacity, 3 splice trays

  • Fusion Splice Capacity: minimum 24F, maximum 144F

  • Sealing: buckles for tightening, IP68

  • Installation: wall mounting, aerial, duct mounting, direct burial

  • Performance: meet all the industry standard performance tests from YD/T 814.1-2013 Closure for Optical Fiber Cables (ICS 33.180.99)

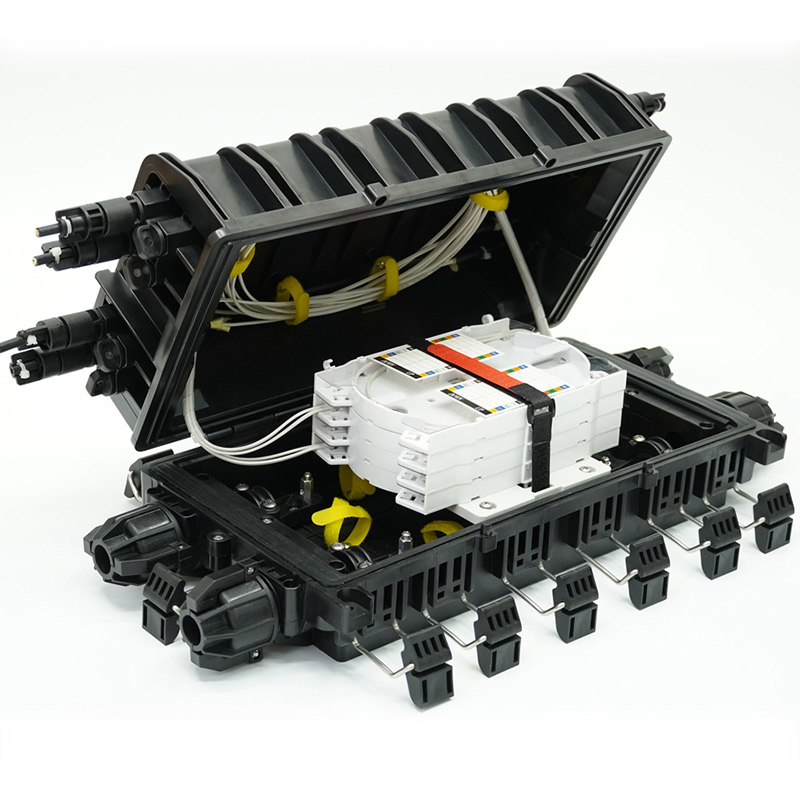

  • Satisfactory space for the placement of fiber joints and fiber storage, preventing the joints from being influenced by the external environment

  • Connector: 6809-A, fast connector; 6809-B, hardened connector


    Type Dimensions(mm) Weight Inner Carton (mm) Outer Carton (mm)
    KWGPJ09-6809-A 510×230×150 3.5-4.0kg

    625×245×175

    645×520×380

    (6 PCS)

    KWGPJ09-6809-B 530×245×175

    550×510×380

    (6 PCS)
