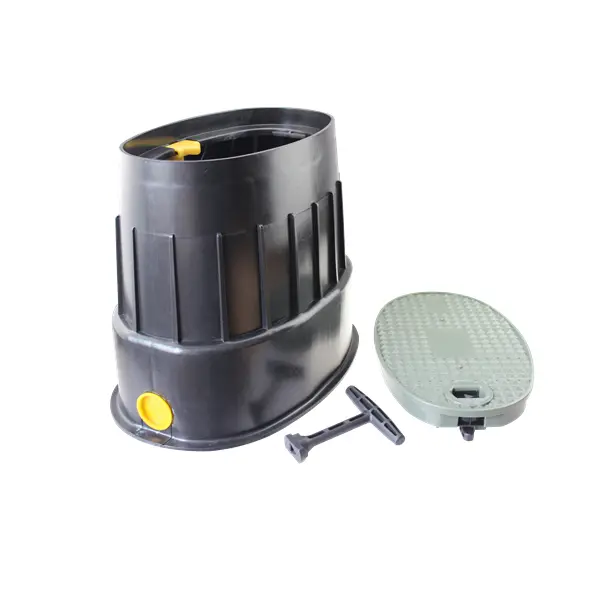

Plastic Cable handhole for Cable Storage CPH-40A

CPH-40A Cable Portable Handhole is in oval shape,equipped with a cover, placed in the ground, and function to place optical cable or backup cable as place for cable entry lines between the 2 houses.
  • fiber optic cable handhole
  • CPH-40A
Quantity:
  Features
Made by high quality PP(polypropylene) material.

Color: dark black for base and garden green for cover.

 Oval shape structure to maximize the available space, able to accommodate 80 meters drop cable without bending.

Strong, sturdy and resistant to corrosion so that it can guarantee  no damage(crack or break) during the installation.

Be able to withstand energy impact = 50 joules, vertical impact load = 24750 pounds, Lateral impact load = 1320 pounds/sq.ft

Fire resistance according to GR-902-CORE.

Temperature application -40C to +65C.

A handle type key to be provided to open and close the handhole.

Configuration
Cable portable handhole CPH-40A Parameter
Material Size Max capacity  Weight Color
PP AxBxC(mm) 80m drop cables 4.0kgs BLACK

515*245*400

Application underground installation
