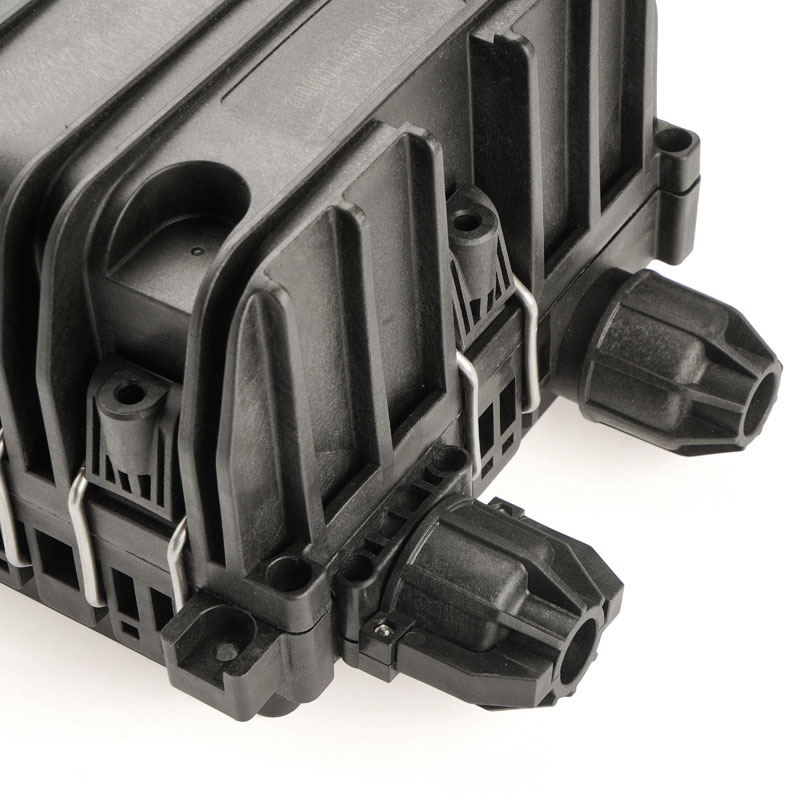

Clip type closure
KWGPJ09-6809-A
| Quantity: | |
|---|---|
Ports: 2 inlets and 2 outlets, applicable to φ9-11 mm cables, and 16 pcs φ4-6 mm drop cables or bow-type cables.
Capacity: 24F/48F tray capacity, 3 splice trays
Fusion Splice Capacity: minimum 24F, maximum 144F
Sealing: buckles for tightening, IP68
Installation: wall mounting, aerial, duct mounting, direct burial
Performance: meet all the industry standard performance tests from YD/T 814.1-2013 Closure for Optical Fiber Cables (ICS 33.180.99)
Satisfactory space for the placement of fiber joints and fiber storage, preventing the joints from being influenced by the external environment
Connector: 6809-A, fast connector; 6809-B, hardened connector
| Type | Dimensions(mm) | Weight | Inner Carton (mm) | Outer Carton (mm) |
| KWGPJ09-6809-A | 510×230×150 | 3.5-4.0kg | 625×245×175 | 645×520×380 (6 PCS) |
| KWGPJ09-6809-B | 530×245×175 | 550×510×380 (6 PCS) |
