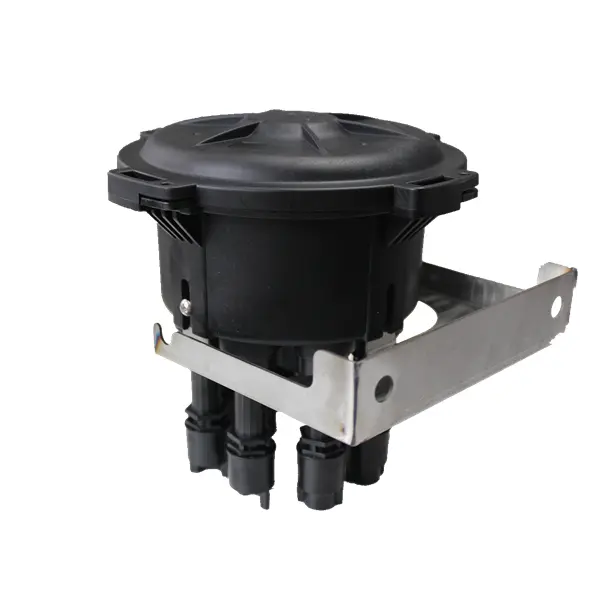

Fiber Access Terminal Cajas Terminales Opticas FATD-0208B

FATD-0208B fiber optic splice closure is able to hold up to 8 subscribers and 12 splicing points as closure. It is specially designed to protect joints of optic cable. Excessive fibers can be stored in storage baskets behind the splice trays.
  • Pre-access type fiber optic closure

  • FATD-0208B

Quantity:
sharethis sharing button
Features ●Protection level: IP65, base and cover sealed with buckled lock  and O-ring system, cable entry ports sealed with rubber.

●Support 12 fiber splices, minimum fiber bending radius: 35mm.

●8 x build-in adapters for drop cable with fast connectors.

●Designated position for the placement of 1pcs of 1:8 splitters.

●Support wall/pole mounted installation.

●Plug-and-play installation, easy for maintenance and expansion.

●2-holes mid span cable entrances(10-16.5mm).

Configuration
Fiber Access Terminal FATD-0208B Parameter
Material Size Max Capacity Nos of built-in adapter Weight Color
PC+GF AxBxC(mm) Splice 12 fibers PLC splitter 8pcs SC/UPC 1.2 kgs Black

182*182*183

1 tray,12fiber/tray 1 pcs of 1x8 or 8pcs SC/APC
Application ● wall-mounted installation pole-mounted installation


Standard Accessories

1 x 12FO splice trays, cable protection tube, fiber protective sleeves, cable tie, wall mounted kits, allen key, plastic key for build-in connectors, cable clamp.
