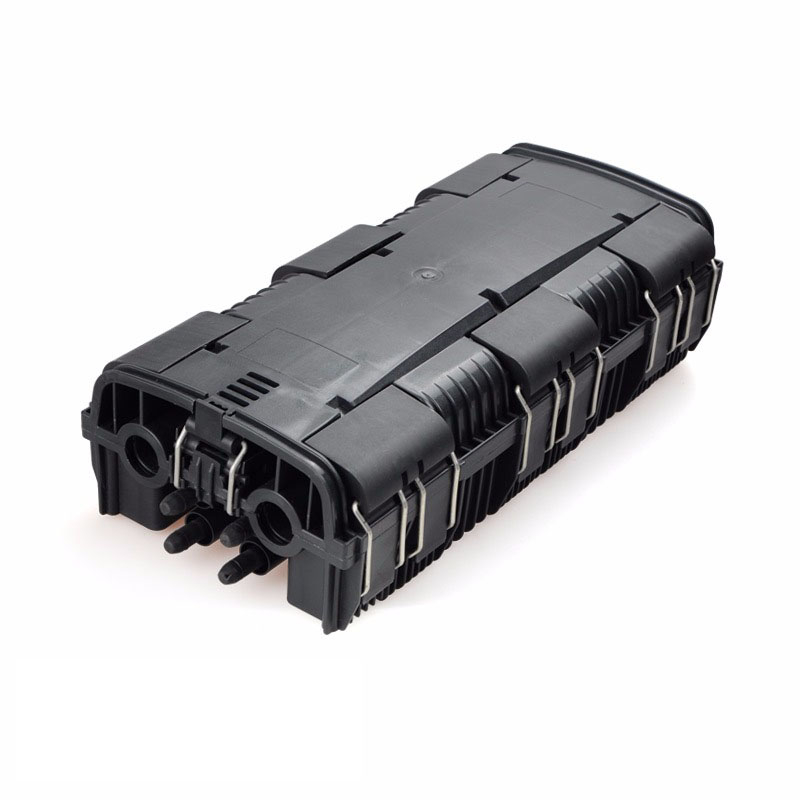

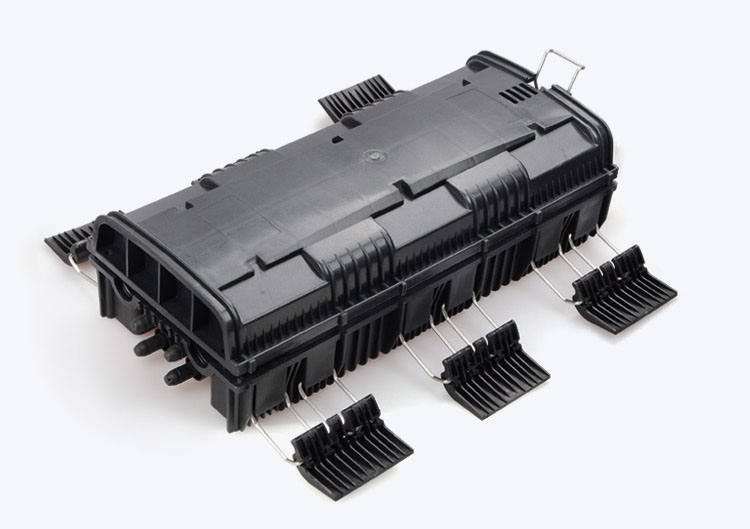

Clip type closure
KW-FCBD96
| Quantity: | |
|---|---|
Description
The optical cable connection barrel connects the optical cable connection box and the body, and is suitable for various structural optical cables, such as direct and branch connection bodies such as overhead, pipeline, and direct burial. Imported PPR plastic box, high strength, corrosion resistance, mature structure, reliable and convenient sealing.
Features
Waterproof /Anti oxidation
Flame retardant/Earthquake resistant
Low insertion loss and back reflection loss
Good exchangeability
Good Durability
High temperature stability.
Precise connector
Operating/Storage Temperature: -40 to +70°C
Specification
1. Working Temperature: -40 degrees centigrade~+70 degrees centigrade
2. Atmospheric Pressure: 70~150Kpa
3. Axial Tension: >2000N/1min
4. Stretching Resistance: 2500N/10 square centimetre(1min)
5. Insulation resistance: >2*104MΩ
6. Voltage Strength: 15KV/1min, no arcover or breakdown
7. Pressure in the water: 50m/72hours
8. Splice tray with optical taking-in radius≥40mm. Low optical loss
Specification:
| Product name | Fiber Splice Box | IP Rate | IP65 |
| Product Model | KW-FCBD96 | Packing Size Inner Box Size | 460*200*120 mm |

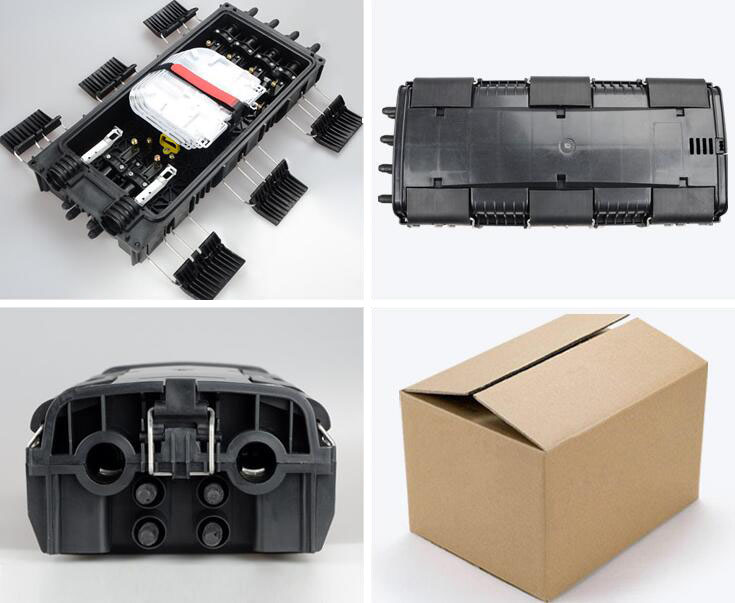

| Ports | 6 inlet port φ25/18mm 8 out port φ18mm | Packing Quantity | 10 pcs / carton 62*42*48cm 30kg |
| Max Core | 24F/tray, max capacity 96F(4 trays) | Material | Polymer Plastic+Fiber |
| Installation Type | Horizontal | G. weight | 3.0kg |
| Key Features: | 1.Suitable for ordinary fiber and ribbon fiber. | ||
