2 Series for Splitting and Wiring fiber optical splice closure not only have the butt-joint and branching function, but also have the function of optical cable splitting and wiring, suitable for the installation of main optical cables and drop cables with different diameters.
The closure adopts horizontal mechanical sealing and advanced internal structure design.
It can be installed one 1:16 module PLC splitter.
There are different drop cable elements to be chosen (Φ5 ,2*3) to input/output (special type can be customized).
The closure is spacious enough for winding and storing fibers.
The patented sealing structure keep good sealing performance after re-entry and re-using.
It could save the installation time and improve work efficiently.
Suitable for bunchy fibers
Aerial, underground, wall-mounting, hand hole-mounting and duct-mounting
It’s especially applicable to FTTH optical fiber distribution
KWGJS2008 Fiber Optic Splice Closures Datasheet
|Type||Splice Tray Capacity|| |
(Module Type PLC Splitter)
|Number of adapters||Max. Capacity||Suitable Cable Dia.Allowed|
|KWGJS2008 (Bunchy)||12-24F||1 pc 1:16||16 pcs||48F|| |

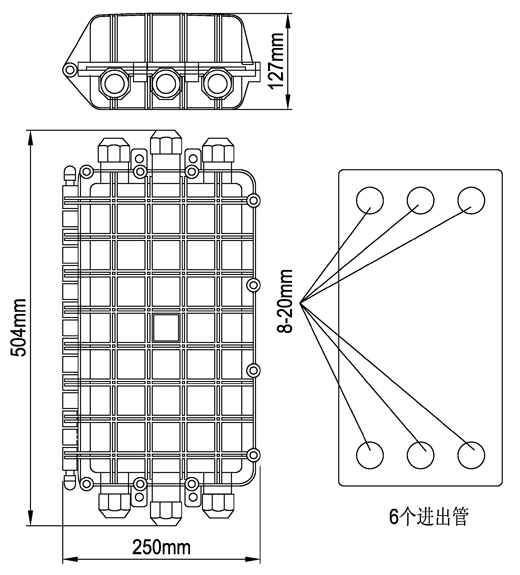

6 round ports:
