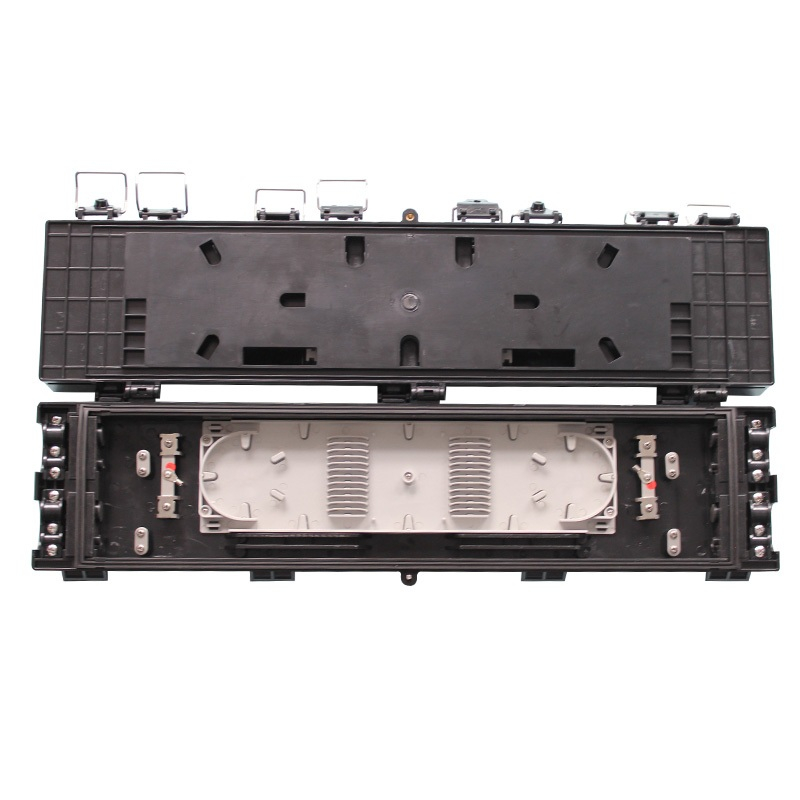

MAX 48cores PLC splitter type
Kewei
KW-2008
| Quantity: | |
|---|---|
Features:
The closure adopts horizontal mechanical sealing and advanced internal structure design.
It can be installed two 1:8 Blockless PLC splitter or one 1:16 Blockless PLC splitter.
4 pcs 8～16mm main cable both ends in and out.
16 pcs 2*3mm drop cable both ends in and out.
The closure is spacious enough for winding and storing fibers.
The patented sealing structure keep good sealing performance after re-entry and re-using.
Easy open and close of closure with very little tool.
24cores Fusing Splice available(Max.48cores)
Applications:
Messenger Installation available in the Closure
Mid-Span Branch,Aerial mounting
Separated in PLC Splitter Room and Fusion Splice Room
It’s especially applicable to FTTH optical fiber distribution
KW-2018 Fiber Optic Splice Closures Datasheet
| Type | Splice Tray Capacity | Splitter Tray (Blockless Type PLC Splitter) | Number of Adapter | Max. Capacity | Suitable Cable Dia. Allowed |
| KW-2008-I | 24-48F | 1 pc 1:8 | 9 pcs | 24-48F | 4-Φ8～Φ16mm 16-2*3mm |
| KW-2008-II | 24-48F | 2 pcs 1:8 | 18 pcs | 24-48F | |
| KW-2008-III | 24-48F | 1 pc 1:16 | 18 pcs | 24-48F |
Features:
The closure adopts horizontal mechanical sealing and advanced internal structure design.
It can be installed two 1:8 Blockless PLC splitter or one 1:16 Blockless PLC splitter.
4 pcs 8～16mm main cable both ends in and out.
16 pcs 2*3mm drop cable both ends in and out.
The closure is spacious enough for winding and storing fibers.
The patented sealing structure keep good sealing performance after re-entry and re-using.
Easy open and close of closure with very little tool.
24cores Fusing Splice available(Max.48cores)
Applications:
Messenger Installation available in the Closure
Mid-Span Branch,Aerial mounting
Separated in PLC Splitter Room and Fusion Splice Room
It’s especially applicable to FTTH optical fiber distribution
KW-2018 Fiber Optic Splice Closures Datasheet
| Type | Splice Tray Capacity | Splitter Tray (Blockless Type PLC Splitter) | Number of Adapter | Max. Capacity | Suitable Cable Dia. Allowed |
| KW-2008-I | 24-48F | 1 pc 1:8 | 9 pcs | 24-48F | 4-Φ8～Φ16mm 16-2*3mm |
| KW-2008-II | 24-48F | 2 pcs 1:8 | 18 pcs | 24-48F | |
| KW-2008-III | 24-48F | 1 pc 1:16 | 18 pcs | 24-48F |
