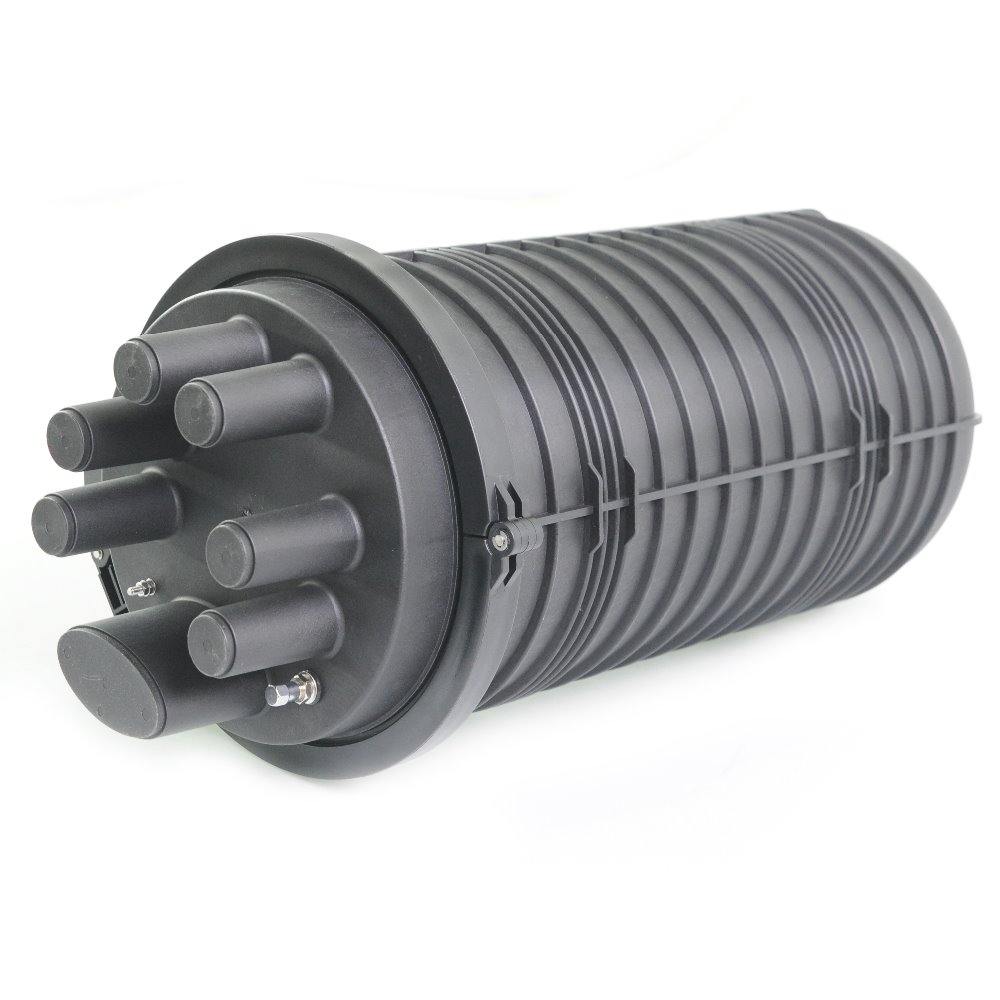

Optical fiber enclosure

Quantity:
  • KW-D023
  • Kewei
Product Description

Feature:
1. For aerial,buried,wall and pipe wall people use wells
2. Ring using a special material that can be repeatedly opened,re-use
3. Splice tray easy to use page design
4. Quick way to make use of open sealed maintenance easier
5. Valve and grounding devices can be installed
6. Advanced internal structure design
7. Easy to re-enter, it never requires re-entry tool it
Scope:
The Scope of application is :aerial,underground,pipeline,handhole.The ambient temperature ranges from -40 to 65℃.

Specifications:

Size: mm  L×W×H
Cable ports

Cable Diameter
Max. Capacity
Core capacity per tray

515×310

7


   φ38×1
Bunchy:288
Ribbon:864

Bunch:24-288(cores)
Ribbon:up to 864(cores)


Trays:

Model No.
Capacity
Size: mm    L×W×H
FOST003
Bunchy
single:24 cores
120×196×10
Ribbon
in normal:6 pieces   max.:12 pieces

Configuration
Main Component
No.
Name of components
Quantity
Usage
Remarks
1
FOSC(cover)
1 set
Protecting fiber cable splices in whole

2
Fiber optic

splice tray(FOST)

Fixing heat shrinkable protective
sleeve and holding fibers

  3
Fiber holding tray
              1 pcs

Holding fibers with protective

coat


4
Base
1 set
Fixing internal and external structure

  5
     Plastic hoop
              1 set
Fixing between FOSC cover and base

6
Seal fitting
1 set
Sealing between FOSC cover and FOSC bottom

Main accessories and special tools
7
Heat shrinkable protective sleeve(single)and Branching clip

Protecting fiber splices
Configuration as per capacity
8
Heat shrinkable protective sleeve

Protecting fiber splices
Configuration as per capacity
9
Nylon tie

Fixing fiber with protective coat
Configuration as per capacity
10
Earthing wire
1 piece
Putting through between earthing device

11
Abrasive cloth
1 piece
Scratching fiber calbes

12
Labeling paper
1 piece
Labeling fiber

13
Metal hoop
1 set
For wall mounting and pole hugging

14
Heat shrinkable fixing sleeve(mass)

Fixing and sealing mass of fiber cable
Configuration as per requirement
15
Aluminum-foil paper
1 piece
Protect the bottom of FOSC


Optional accessories
No.
Name of components
Quantity
Usage
Remarks
1
Pressure testing valve
1 set
After injecting air it is used for pressure testing and sealing testing
 Configuration as per requirement
2
Earthing deriving device
1 set
Deriving metallic components of fiber cable in the FOSC for earthing connection
Configuration as per requirement
3
Desiccant
1 bag
Put into FOSC before sealing for desiccating air.
Configuration as per requirement
4
Heat shrinkable protective sleeve
Configuration as per requirement
Protecting fiber splices
Configuration as per requirement

 Package:

No.
specification
Carton size(cm)
Capacity
N.W
Remarks
1
small size box
28×28×53
1pcs
3.1-3.9KG
Configuration as per weight
2
big size box
58×58×54.5
4pcs
12.4-15.6KG
Configuration as per weight
