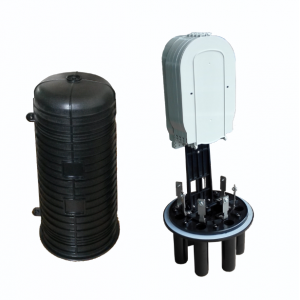

Discription: 576FO Heat shrinkable closure with 1 oval port and 5 circular ports, 8 splice tray and total 576 splices. IP68.
Feature and benefits
▪ The Housing is made of Engineering plastic,
▪ Dome type heat shrinkable seal
▪ 1 oval port for loop- through cable and 5 circular ports.
▪ Reliableand reusable rubber gasket sealing system for the housing
▪ 8 splice trays 36/72 splice each, reach 576 splice in total.
▪ Bigger storage cassette, more fibers would be stored.
▪ Reliable integrated device for cable sheath and cable strengthen member fastened with metal clamp.
▪ Aerial, wall-mounted or pole-mounted kit for customer option.
| Part No. | GJS-D5766-II |
| Dimension (mm) | 550×φ225 |
| Dimension of the Cylinder (mm) | 425×φ210 |
| Branch cable ports and inner diameter | 5×φ23mm |
| Inner diameter of oval port | 85×45mm |
| Max. Number of Splice tray | 8 |
| Splice capacity of each tray | 36/72 FO |
| Splice capacity in total | 288/576 FO |
| Installation way | Suitable for aerial, man hole, wall and pole mounted |
