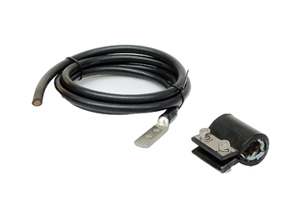

OUTDOOR GROUNDING CLAMP

It's suit for grounding binding of cable:1/4",1/2",3/8",7/8",5/4",1-5/8",etc.
Suit for feeder cable,optic cable,power cable grounding clamp.

Electric Property

Current	8/20 μs >70KA
Voltage	50Hz 30kv
Grounding Resistance	≤ 4mΩ
Grounding wire size	AW6 / 16mm2
Grounding wire length	According to customer requirements
Material	Copper,rubber
Waterproofing	IP65

Mechanical Capacity

Stainless steel material: smooth surface, no burr and crack, there is no obvious inclusion and sink mark.
Rubber material: clean surface, no injury and bubble.
Consistent density grounding wire: uniform insulating barrier, no crack and surface aging.
Bolt & nut: clean surface, no crack and rust staining.
Simple to install grounding kit
