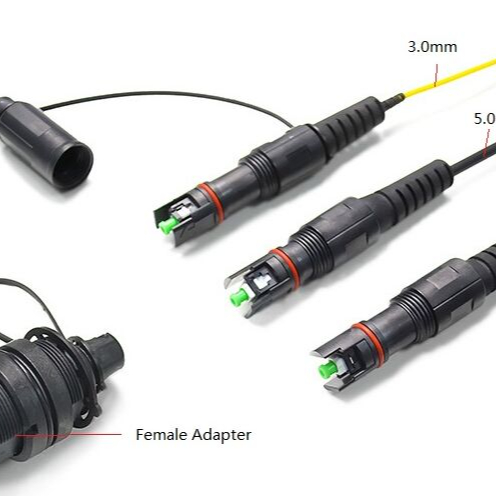

Fiber Optical OptiTap Mini SC APC patch cord 2 fiber Core Singlemode patch cord

H connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.
The H connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal.
The SC/APC connectors mate to a standard adapter providing a common interface for FTTX applications



Provides superior weather resistance for FTTA and other outdoor applications.
Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies
Suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments
Can be installs without special tooling
Threaded style coupling
Provides bend protection for installation and long term use
  • optitap SC/APC

  • Keweifiber

Quantity:
sharethis sharing button
Features :
  • Single fiber, SC-based connector
  • Bird proof and rodent resistant
  • IP68 water and dust protection
  • Low profile in-line receptacle available
  • No installation tools required
  • 100 minimum mating cycles
  • In-line connection available
  • Operating temperature: -40° to 85°C
  • Cable Diameter Range: 2.0mm, 3.0mm, 4.8mm to 7mm
  • 33 lb. axial cable retention (150N)

Complied Standards :
Meet standards: Telcodia GR-326-CORE Issue 4, IEC 61754 series, YD/T 1272 series, etc.

Specification



Type

SM-UPC

SM-APC

MM-UPC

Typical

Max

Typical

Max

Typical

Max

Insertion Loss

≤0.1dB

≤0.3dB

≤0.15dB

≤0.3dB

≤0.05dB

≤0.3dB

Return Loss

≥50dB

≥60dB

≥30dB

Durability

500 mating cycles

Working temperature



-40 - 85℃
