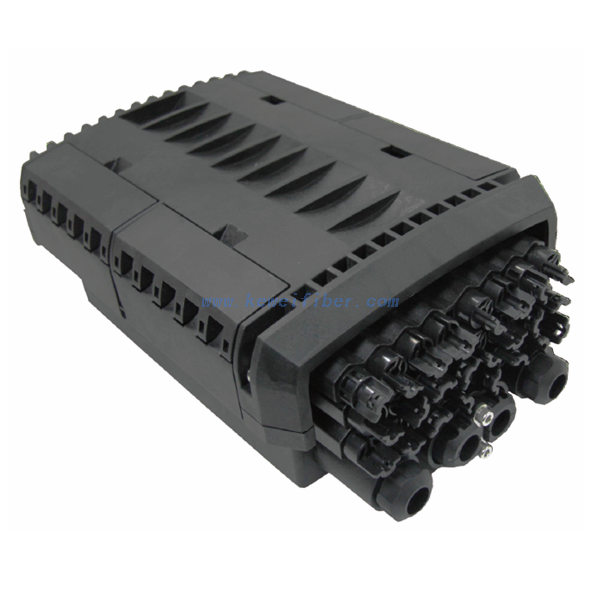

Fiber Access Terminal Closure for FTTH

KWFATC01 fiber access terminal closure is able to hold up to 24 subscribers and 144 splicing points as closure. It is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing,splitting,distribution,storage and cable connection in one solid protection box.
  • 24 cores drop cable 144ports splice

  • Kewei

  • KW-FATC01

Quantity:
sharethis sharing button
    Description KWFATC01 fiber access terminal closure is able to hold up to 24 subscribers and 144 splicing points as closure. It is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing,splitting,distribution,storage and cable connection in one solid protection box.● Water-proof design with IP-68 Protection level.  ● Integrated with flap-up splice cassette and adaptor holder.  ● Impact test:1K10. Pull Force:100N. Full Rugged design.   ● All stainless metal plate and anto-rusting bolts nuts.   ● Fiber bend radius control more than 400mm.   ● Suitable for the fusion splice or mechanical splice.   ● 2 pcs of 1x8 splitter can be installed as an option.    ● Mechanical sealing structure and mid-span cable entry(10-17.5mm).     ● 24 Ports cable entrance for drop cable.     ● 24 adaptors for drop cable patching.Configuration
Fiber Access Terminal Closure KWFACT01 Parameter
Material Size Max Capacity Ports Weight Color
Strengthen Polymer Plastic AxBxC(mm) Splice Adaptor PLC Splitter Feeder:4pcs 5kg Black
385x245x155 144F Ports 24F 2 pcs of 1x8 Drop:24pcs
Standard Accessories Splice cassette and cable management tool,installtion bolts and nuts,protection sleeve,hose clamp,cable tube,wreach,cover holder,rubber seal for cable entrance.Optional Accessories Pole ring
