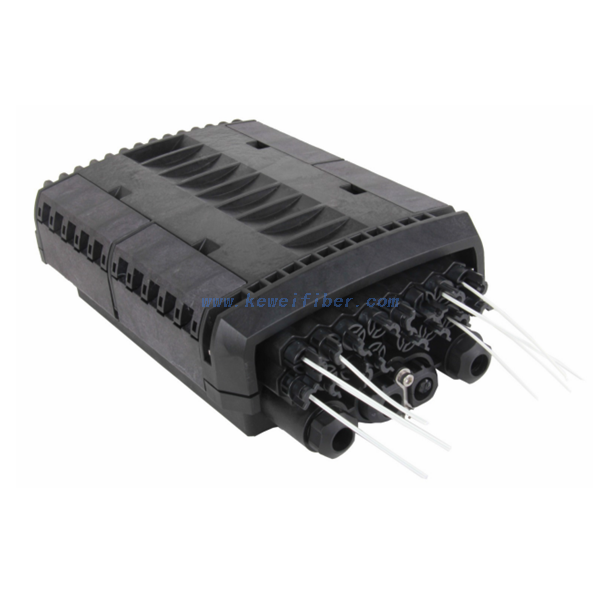

FTTH cable Access Terminal Closure

KWFACT02 fiber access terminal closure is able to hold up to 16 subscribers and 96 splicing points as closure. It is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing,splitting,distribution,storage and cable connection in one solid protection box.

Quantity:
  • 16 cores FTTH drop cable
  • Kewei
  • KWFATC02
Description
  KWFACT02  fiber access terminal closure is able to hold up to 16 subscribers and 96 splicing points as closure. It is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing,splitting,distribution,storage and cable connection in one solid protection box.
Features
● Water-proof design with IP-68 Protection level.
● Integrated with flap-up splice cassette and adaptor holder.
● Impact test:1K10. Pull Force:100N. Full Rugged design.
● All stainless metal plate and anto-rusting bolts nuts.
● Fiber bend radius control more than 400mm.
● Suitable for the fusion splice or mechanical splice.
● 2 pcs of 1x8 splitter can be installed as an option.
● Mechanical sealing structure and mid-span cable entry(10-17.5mm).
● 16 Ports cable entrance for drop cable.
● 24 adaptors for drop cable patching.
Configuration
Fiber Access Terminal Closure KWFATC02 Parameter
Material Size Max Capacity Ports Weight Color
Strengthen Polymer Plastic AxBxC(mm) Splice Adaptor PLC Splitter Feeder:4pcs 4.5kg Black
385x245x130 96F Ports 24F 2 pcs of 1x8 Drop:16pcs
Standard Accessories
Splice cassette and cable management tool,installtion bolts and nuts,protection sleeve,hose clamp,cable tube,wreach,cover holder,rubber seal for cable entrance.
Optional Accessories
Pole ring
