Dome splice closure

Quantity:
  • KW-D011
  • Kewei
Product Description

Feature:
1. For aerial,buried,wall and pipe wall people use wells
2. Ring using a special material that can be repeatedly opened,re-use
3. Splice tray easy to use page design
4. Quick way to make use of open sealed maintenance easier
5. Valve and grounding devices can be installed
6. Advanced internal structure design
7. Easy to re-enter, it never requires re-entry tool it
Scope:
The Scope of application is :aerial,underground,pipeline,handhole.The ambient temperature ranges from -40 to 65℃.

Specifications:

Size: mm  L×W×H
Cable ports

Cable Diameter
Max. Capacity
Core capacity per tray

480×220

6


φ16×6
Bunchy:288
Ribbon:432

Bunch:24-288(cores)
Ribbon:432(cores)

Trays:

Model No.
Capacity
Size: mm    L×W×H
FOST048
Bunchy
single:48 cores
140×249×12
Ribbon
24 pieces

Configuration
Main Component
No.
Name of components
Quantity
Usage
Remarks
1
FOSC(cover)
1 set
Protecting fiber cable splices in whole
Internal diameter:400*220(mm)
2
Fiber optic

splice tray(FOST)
Max 6 trays (either bunchy or ribbon)
Fixing heat shrinkable protective
sleeve and holding fibers
Suitable for:
Bunchy:24,36,48,72(cores)
Ribbon:12,18(pieces)
  3
Fiber holding tray
              1 pcs

Holding fibers with protective

coat


4
Base
1 set
Fixing internal and external structure

  5
     Plastic hoop
              1 set
Fixing between FOSC cover and base

6
Seal fitting
1 set
Sealing between FOSC cover and FOSC bottom

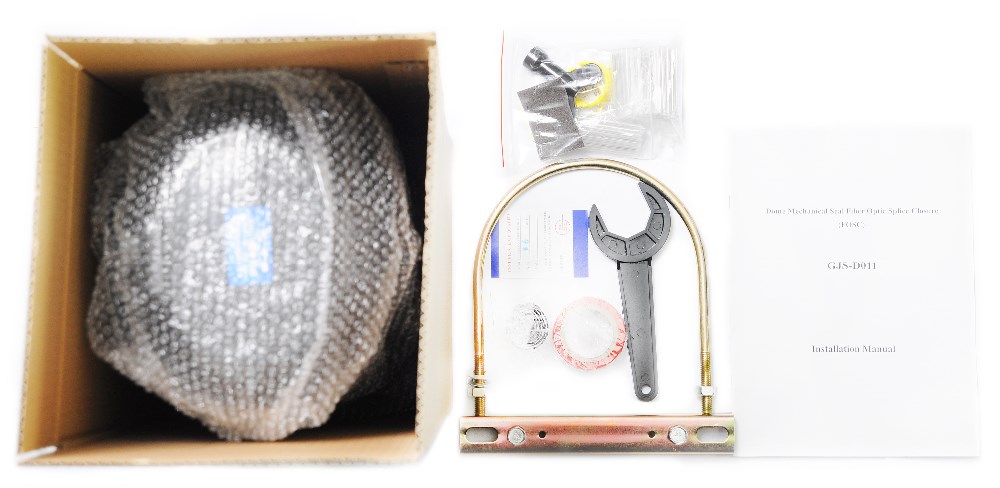

Main accessories and special tools
7
Heat shrinkable protective sleeve

Protecting fiber splices
Configuration as per capacity
8
Nylon tie

Fixing fiber with protective coat
Configuration as per capacity
9
Earthing wire
1 piece
Putting through between earthing device

10
Abrasive cloth
1 piece
Scratching fiber calbes

11
Labeling paper
1 piece
Labeling fiber

12
M10 Special wrench
1 piece
tightening nut of reinforced core

13
Metal hoop
1 set
For wall mounting and pole hugging

14
Insulation tape
1 roll
Enlarging diameter of fiber cable for easy fixing

15
Seal tape
1 roll
Enlarging diameter of fiber cable which fits in with seal fitting
Configuration as per specification
16
Seal rings for inlet/outlet ports
1 set
For the inner seal of inlet/outlet ports

17
Wrench
1 pieces
Installing and tightening nut(plastic) of inlet/outlet tube.

18
Instruction manual
1 piece
standard installation


Optional accessories
No.
Name of components
Quantity
Usage
Remarks
1
Pressure testing valve
1 set
After injecting air it is used for pressure testing and sealing testing
 Configuration as per requirement
2
Earthing deriving device
1 set
Deriving metallic components of fiber cable in the FOSC for earthing connection
Configuration as per requirement
3
Desiccant
1 bag
Put into FOSC before sealing for desiccating air.
Configuration as per requirement
4
Heat shrinkable protective sleeve
Configuration as per requirement
Protecting fiber splices
Configuration as per requirement

 Package:

No.
specification
Carton size(cm)
Capacity
N.W
Remarks
1
inner box
22×21.5×49
1pcs
3.4-4.0KG
Configuration as per weight
2
outer box
69.5×44×52
6pcs
20.4-24KG
Configuration as per weight
