Apply with 1-5/8" coaxial cable
Kewei
KWGD158
Quantity: | |
---|---|
Clip-on ground kits are an advanced type for coaxial cable grounding, providing an easy installation as well as dependable protection of coaxial cable system. The designed clip design and pre-formed strap allow the clip-on ground kits to be easily slipped over the coaxial cable’s outer conductor.
The latch was optimized to provide a secure fix maximizing performance by ensuring proper contact surface area and pressure.

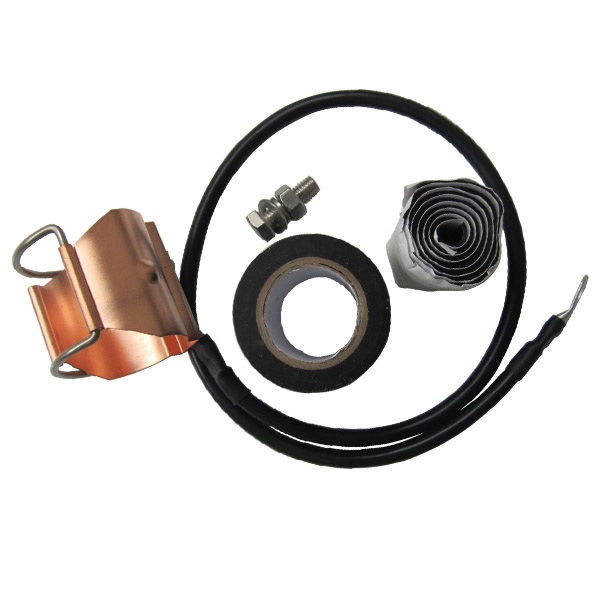

Components & material of clip-on grounding kit:
◆ Contact: high quality copper strap;
◆ Grounding clamp: per-formed copper strap;
◆ Grounding / earthing cable:16mm2 or 25mm2 BV or BVR copper wire for earthing to buss bar;
◆ Copper lugs: 16-8, 25-8 tin plated copper lugs to connect to grounding bar;
◆ Installation accessories: stainless steel 304.
Clip-on ground kits are an advanced type for coaxial cable grounding, providing an easy installation as well as dependable protection of coaxial cable system. The designed clip design and pre-formed strap allow the clip-on ground kits to be easily slipped over the coaxial cable’s outer conductor.
The latch was optimized to provide a secure fix maximizing performance by ensuring proper contact surface area and pressure.
Components & material of clip-on grounding kit:
◆ Contact: high quality copper strap;
◆ Grounding clamp: per-formed copper strap;
◆ Grounding / earthing cable:16mm2 or 25mm2 BV or BVR copper wire for earthing to buss bar;
◆ Copper lugs: 16-8, 25-8 tin plated copper lugs to connect to grounding bar;
◆ Installation accessories: stainless steel 304.
Kunshan Kewei Fiber Communcations Equipment Co.,Ltd.
