8/12/24cores MTP-LC/SC/FC/ST Staggered harness Cables assemblies

9

8/12/24cores MTP-LC/SC/FC/ST Staggered harness Cables assemblies

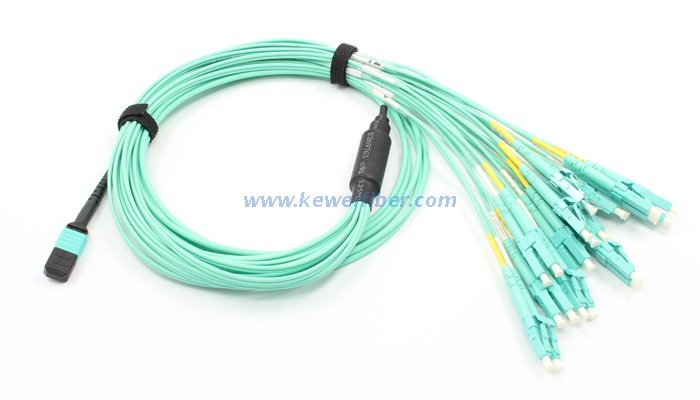

MTP-LC/SC/FC/ST Fiber Patch Cord is terminated with MTP and LC/SC/FC/ST connector on both ends. Support speeds up to 10/40/100Gbps data center solutions. They are typically adopted to interconnect cassettes, panels or ruggedized MTP fan-outs, and to facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments. Besides, MTP/MPO also provides much flexibility and convenience once you have to change the connector style in the patch panels. Instead of changing the connector on the cable trunk, just installing a new cassettes with the new connector style on the cross-connect side of the patch panel.

Model:
8/12/24 fibers
Brand:
Kewei

Quantity:




Inquire Add to Basket

Product Description

Features:

Low insertion loss, high return loss
MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
Economical solution for mass-termination of fiber
Designed for low loss and standard loss SM and MM applications
Ruggedized round cable, oval cable and bare ribbon options available
Color coded housings available to differentiate fiber type, polish type and/or connector grade
Good in repeatability and exchangeability

MTP products’ Standard:

Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5); Telcordia GR-1435-CORE compliant
Structured cabling per TIA-568-C
Parallel Optics

-Optical Internetworking Forum (OIF) Compliant

-InfiniBand Compliant

InfiniBand

- 10G Fiber Channel Compliant

- 40G and 100G IEEE 802.3

- QSFP

Other connectors’ Industrial Standard:

SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.
LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.
FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973
ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973 Etc.

AVAILABILITY:

4,8,12,16,24 cores
Fanout connector can be SC,FC,LC,ST,E2000 etd
LC can be simplex,duplex,uniboot, unibody

MTP patch cord’s Specification:

Spec items.	Singlemode (APC 8 degree polish)	Multimode (PC Flat polish)
Insertion loss(MTP)	Standard loss：≤0.75dB(max) Low loss：≤0.35dB(max)	Standard loss：≤0.6dB(max) Low loss：≤0.35dB(max)
Insertion loss (LC/SC/FC/ST)	≤0.3dB	≤0.3dB
Return loss(MTP)	≥60dB	≥20dB
Return loss(LC/SC/FC/ST)	APC≥60dB;UPC≥50dB	PC≥35dB
Durability	<0.3dBtypical change, 200 matings
Interchangeability	≤0.2dB
Tensile strength	>70N
Operating Temperature	-40 to + 85°C

MTP Interference index

Connector type	Testing items	Min	Max
MTP PC	ROC_X(abs)(mm)	500	\
	ROC_Y(abs)(mm)	50	\
	Angle_X(deg)	-0.2	0.2
	Angle_Y(deg)	-0.2	0.2
	Max.DH.All Fiber(nm)	-600	600
	Max.DH.Ave(nm)	-300	300
	Max.DH.Adj(nm)	-300	300
	Max. Core Dip(nm)	-300	300
	Fiber height(nm)	-300	300
	ROC_X(abs)(mm)	1000	3000
MTP APC	ROC_X(abs)(mm)	500	\
	ROC_Y(abs)(mm)	50	\
	Angle_X(deg)	-0.2	0.2
	Angle_Y(deg)	7.8	8.2
	Max.DH.All Fiber(nm)	-600	600
	Max.DH.Ave(nm)	-300	300
	Max.DH.Adj(nm)	-300	300
	Fiberheight(nm)
