1/2"(15-17mm)
Kewei
KW12DH3
Quantity: | |
---|---|
Feeder clamps for coaxial RF cable are used with following products;
● Telecom cable ● Fiber cable ●Coaxial cable ●Feeder cable
● Hybrid cable ● Corrugated cable ●Smooth cable ●Braid cable
Introduction:

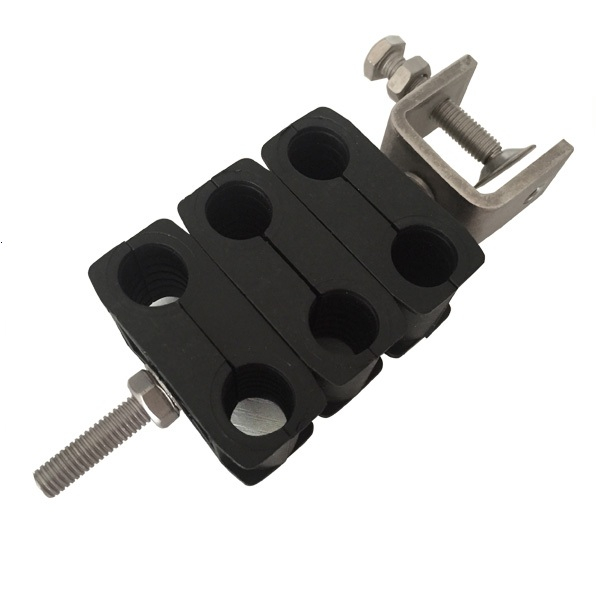

Feeder clamp is widely used in site installation to fix coaxial feeder cables to base towers, these clamps provide an efficient way of managing & securing the feeder installation system. The Clamps are manufactured out of UV resistant material. The design offers least stress and maximum grip to manage the cable system. They are strictly made out of non-rusting product to sustain all weather conditions. The material of these products is high standard stainless steel and high quality PP/ABS.
Specifications:
Size :1/4”, 3/8”, 1/2"S, 1/2”, 7/8”, 1-1/4”, 1-5/8", or use with grommet rubber for different size cable freely.
Features : Quick and easy installation.
Product Information:
Clamp type | Double hole type |
Nominal size | 1/4”, 3/8”, 1/2"S, 1/2”, 7/8”, 1-1/4”, 1-5/8", or use with grommet rubber for different size cable freely |
Compatible Max diameter | 17mm |
Compatible Min diameter | 15mm |
threaded rod | M8 or M10 |
Material | 304 stainless steel+ PP |
Packing | Plastic bag + carton |
UV resistance | ASTM G154-06 Cycle 1 |
Tempreture | -55°C - +85°C |
Feeder clamps for coaxial RF cable are used with following products;
● Telecom cable ● Fiber cable ●Coaxial cable ●Feeder cable
● Hybrid cable ● Corrugated cable ●Smooth cable ●Braid cable
Introduction:
Feeder clamp is widely used in site installation to fix coaxial feeder cables to base towers, these clamps provide an efficient way of managing & securing the feeder installation system. The Clamps are manufactured out of UV resistant material. The design offers least stress and maximum grip to manage the cable system. They are strictly made out of non-rusting product to sustain all weather conditions. The material of these products is high standard stainless steel and high quality PP/ABS.
Specifications:
Size :1/4”, 3/8”, 1/2"S, 1/2”, 7/8”, 1-1/4”, 1-5/8", or use with grommet rubber for different size cable freely.
Features : Quick and easy installation.
Product Information:
Clamp type | Double hole type |
Nominal size | 1/4”, 3/8”, 1/2"S, 1/2”, 7/8”, 1-1/4”, 1-5/8", or use with grommet rubber for different size cable freely |
Compatible Max diameter | 17mm |
Compatible Min diameter | 15mm |
threaded rod | M8 or M10 |
Material | 304 stainless steel+ PP |
Packing | Plastic bag + carton |
UV resistance | ASTM G154-06 Cycle 1 |
Tempreture | -55°C - +85°C |
Kunshan Kewei Fiber Communcations Equipment Co.,Ltd.
