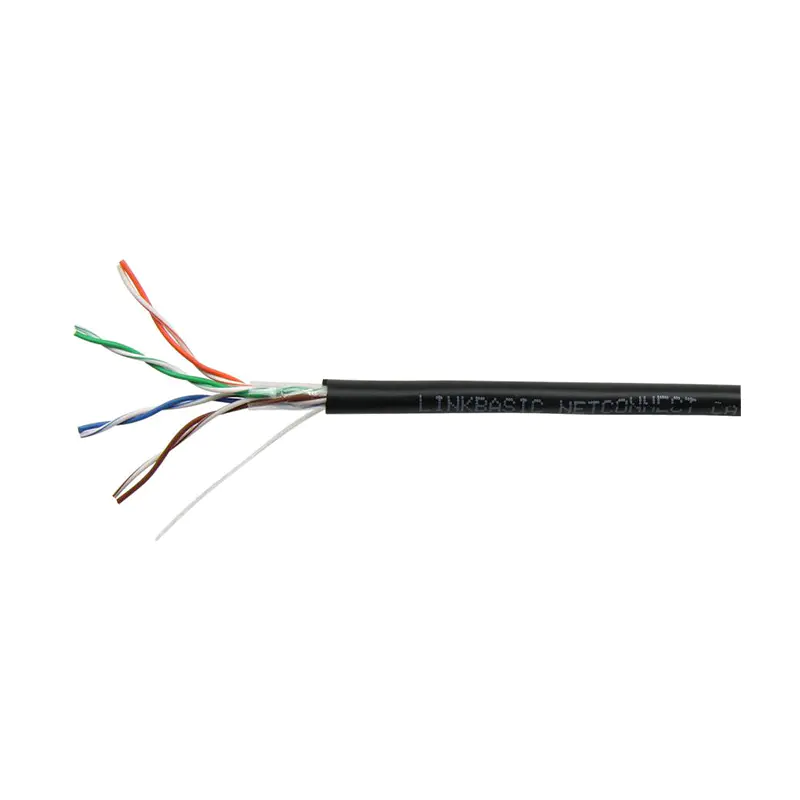

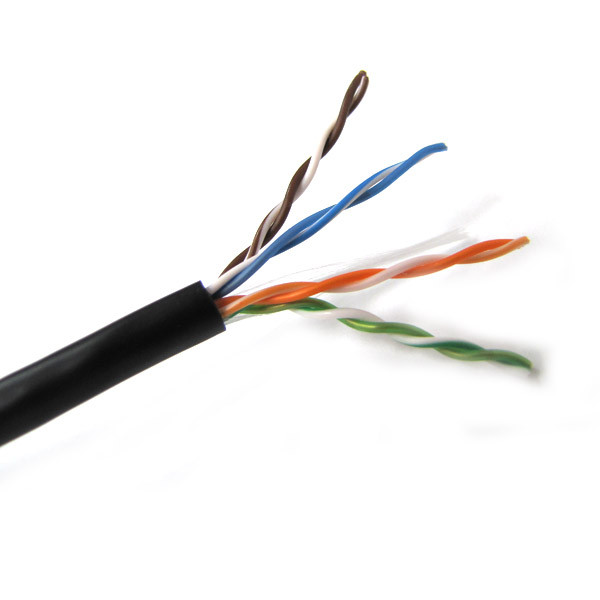

Outdoor Cat 5E UTP Solid Cable
Kewei
| Quantity: | |
|---|---|
ELECTRICAL CHARACTERISTICS
MAX. Matual Capacitance @ kHz | ≤5.6 nF/100M |
MAX. Capacitance unbalance (pF/ 100m) | ≤330pF/100M |
Nominal Velocity of Propagation | 69% |
Max. Delay Skew (ns/100m) | 45ns/100M |
Max. Conductor DC Resistance @ 20 Deg. C | 9.5Ω /100M |
Max. DC Resistance unbalance @ 20 Deg. C | ≤2% |
Max. Insulation resistance (MΩ/ k m) | 5000 |
Max. Operating Voltage-UL | 300V |
CONSTRUCTION
Structure | Construction | UTP |
Number of Pairs | 4 Pair | |
AWG | 24AWG | |
Conductor Dimension (mm) | 0.50 | |
Solid or Stranded; Bare or Tinned | Solid Bare Copper
| |
Insulation | insulation material | HDPE |
Insulation Dimension [mm) | 0.88 | |
Number Colour (Ring or Strip marking) | 1.White/B[ue(Ring) & Blue | |
Cross Filler | No | |
Shield | IndividuaISinleld & Material | No |
Outer Shield & Material | No | |
Drain Wire | No | |
Outer Jacket | Outer Jacket Material | PVC or（LSZH） |
Outer Jacket Ripcord | Based On Customer Requirements | |
Overall Nominal Diameter (mm) | 24AWG UTP nom:4.8±o.3mm |
MECHANICAL CHARACTERISTICS
Operating Temp. Range | -20~75℃ |
Max. Recommended | 100N |
PullingTension Min. Bend Radius (Install) | 10x O.D. |
Flame Test | CMX, CMR, CM |
APPLICATION
● 100 Base-T4
● 100Base-TX
● 100VG-AnyLAN
● 155Mbps ATM
● 622Mbps ATM
