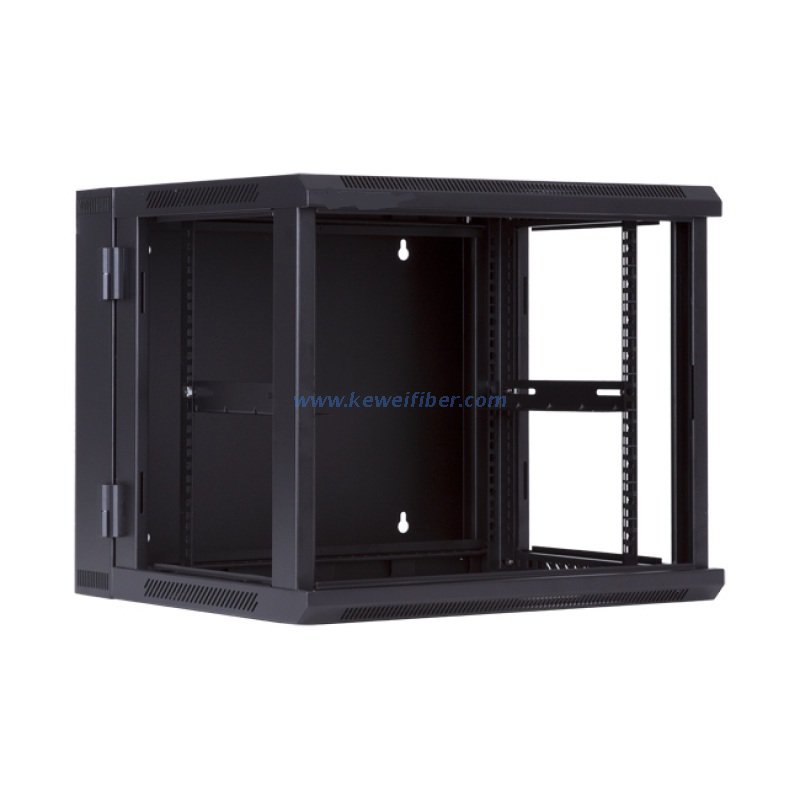

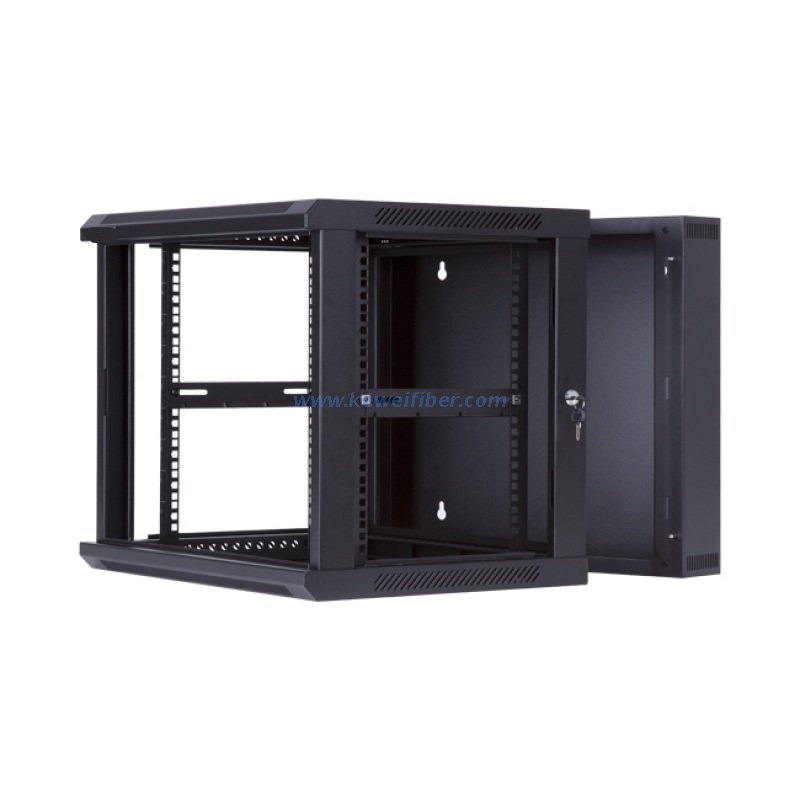

Two-section hanging cabinet 19"

Comply with ANSI/EIARS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7, GB/T3047.2-92 standard. Compatible with metric ETSI and 19 inch international standard.
Compatible with metric, ETSI and 19’ international standard.


APPLICATION

Widely used in network system, educational system, broadcasting system and telecommunication system. Suitable for placing server
computer and precision electronic equipments.

MATERIALS

Cool rolled steel
Thickness: Vertical rail:1.5mm
Else in 1.2mm
Tempered smoky-gray glass with thickness of 5mm.

Quantity:
  • WCC
  • Exquisite design with precise craftsmanship.
  • International popular smoky-gray glass front door.
  • Easily be mounted on wall, or placed on floor after installed castor or feet.
  • Loading capacity: 60KG.
  • Top and bottom wiring channel could be closed.
  • Removable front door and side panel, easily installing and maintaining.
  • Surface finish: Degreased, acid cleaned, phosphoric, water cleaned,electro-static powder coating, meet ROHS standard.
  • Optional color: black/gray.
  • Optional accessories.

Part No

Capacity/U

Width/mm

Depth/mm

Height/mm

CM/Width/m

CM/Depth/m

CM/Height/m

Volume/CBM

WCC06-655-*☆

6U

600

550

368

0.67

0.62

0.43

0.18

WCC09-655-*☆

9U

600

550

501

0.67

0.62

0.56

0.23

WCC12-655-*☆

12U

600

550

635

0.67

0.62

0.70

0.29

WCC15-655-*☆

15U

600

550

789

0.67

0.62

0.83

0.34

WCC18-655-*☆

18U

600

550

901

0.67

0.62

0.96

0.40

* = Front door(A=Steel Casement Door B=B=Smoky-grey glass door C=Smoky-gray glass door with frame punche

D =Perforation steel door with high ventilation level(hexagonal type))

☆=Colors A=Black(RAL9004) B=Gray(RAL7044)
