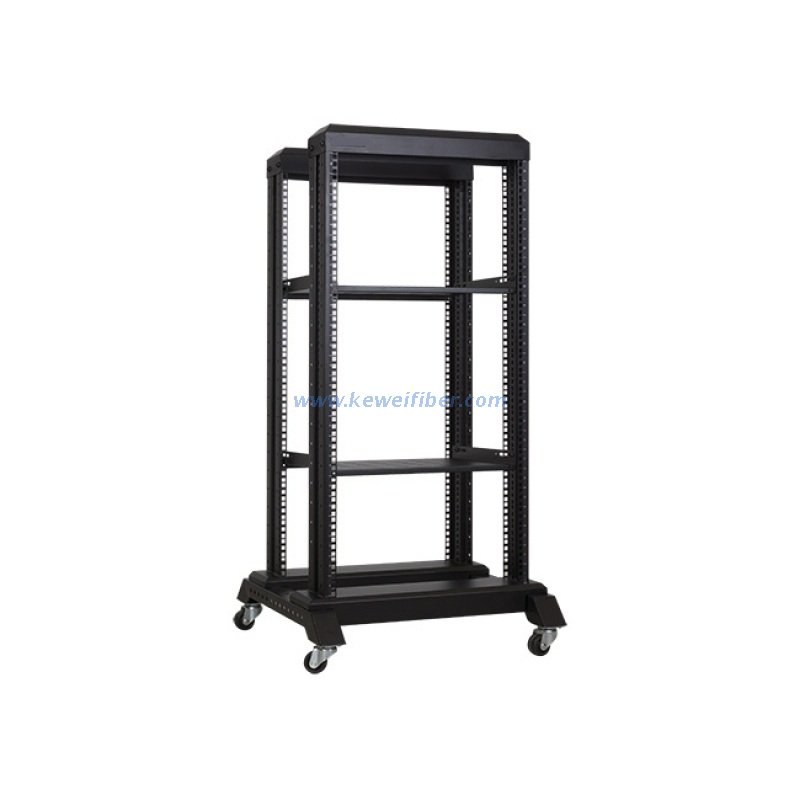

Open rack 19"

Comply with ANSI/EIARS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7, GB/T3047.2-92 standard.
Compatible with metric ETSI and 19 inch international standard.


APPLICATION

Widely used in network system, educational system, broadcasting system and telecommunication system. Suitable for placing server
computer and precision electronic equipments.


MATERIALS

Cool rolled steel
Thickness: Front and bottom beams:1.5mm
Else in 1.2mm
Tempered smoky-gray glass with thickness of 5mm.

Quantity:
  • DRB
  • Modular design, easily assemble and disassembl for delivery, low cost.
  • Various optional accessories according to requirements.
  • Static load: 150kg.
  • Lever of protection: IP20.
  • Surface  finish:  Degreased,  acid  cleaned,  phosphoric,  water  cleaned,electro-static powder coating, meet ROHS standard.
  • Optional color: black/gray.
  • Optional accessories.

Part No

Capacity/U

Width/mm

Depth/mm

Height/mm

CM/Width/m

CM/Depth/m

CM/Height/m

Volume/CBM

DRB18-66-☆

18U

600

600

1040

0.63

0.31

1.00

0.1953

DRB22-66-☆

22U

600

600

1222

0.63

0.31

1.18

0.2305

DRB27-66-☆

27U

600

600

1444

0.63

0.31

1.40

0.2734

DRB32-66-☆

32U

600

600

1555

0.63

0.31

1.63

0.3183

DRB37-66-☆

37U

600

600

1666

0.63

0.31

1.85

0.3713

DRB42-66-☆

42U

600

600

1888

0.63

0.31

2.07

0.4043

DRB47-66-☆

47U

600

600

2110

0.63

0.31

2.29

0.4472

☆=Colors A=Black(RAL9004) B=Gray(RAL7044)
