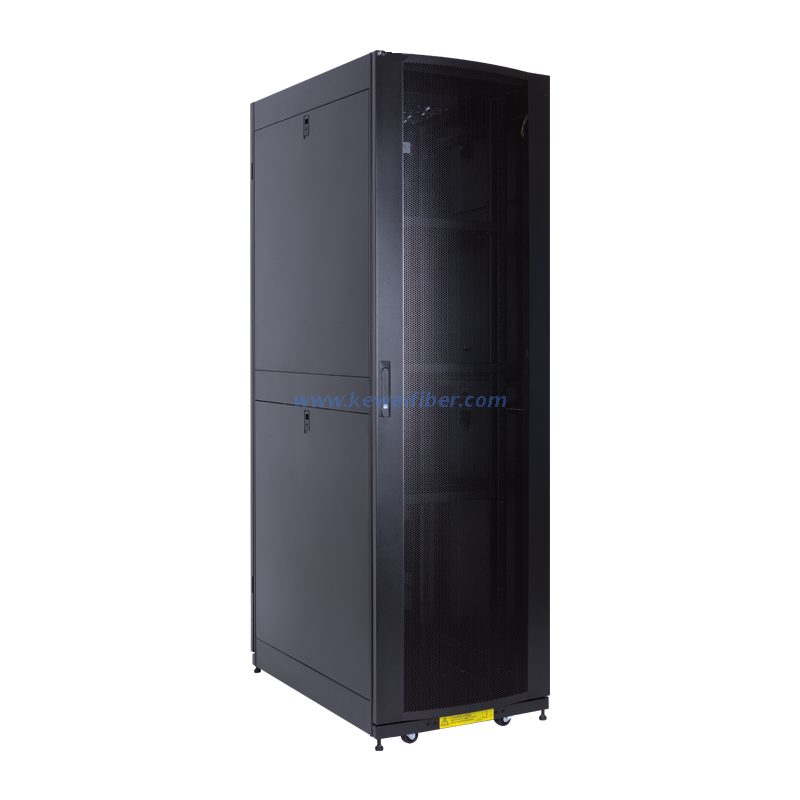

NCF Network Cabinet

Comply with ANSI/EIARS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7, GB/T3047.2-92 standard. Compatible with metric ETSI and 19 inch international standard.


APPLICATION

Widely applied in finance, securities and data center; adopted by the professional servers’ network providers as IBM, SUN, HP, COMPAQ, DELL etc.


MATERIALS

Cold-rolled steel sheet. Thickness for frame 2.0mm, mounting rail 2.0mm, side panel 1.5mm,fixed shelf 1.5mm.

Quantity:
  • NCF
  • Surface finish: degreasing, pickling, phosphoric, powder coating . The thickness of powder coating is 80μm-100μm .
  • Curved  perforated  front  door  and  double-section  rear  door  enable equipment protection, reliable operation with entilation rate above 80% .
  • Double-section  side  panels,  each  panel  can  be  easily  assembled separately.
  • Top and bottom wiring channel can be closed and adjustable.
  • Backside with a pair of vertical cable management .
  • Mounting rail with U mark.
  • Efficient and solid cabinet connection.
  • With earthing kits.
  • Advanced lock .
  • Optional plinth to meet under-base wiring, ventilation and rat-proof .
  • Adjustable feet and heavy duty castors are available at the same time , static loading: 1600KG .
  • Full range of optional accessories.

Part No

Capacity/u

Width/mm

Depth/mm

Height/mm

CMwidth/m

CM Depth/m

CM Heigh/m

Volume/CBM

NCF37-66-*#☆

37U

600

700

1800

0.65

0.75

1.8

0.7605

NCF37-68-*#☆

37U

600

900

1800

0.65

0.95

1.8

0.9945

NCF37-610-*#☆

37U

600

1100

1800

0.65

1.15

1.8

1.2285

NCF37-88-*#☆

37U

800

900

1800

0.85

0.95

1.8

1.3005

NCF37-810-*#☆

37U

800

1100

1800

0.65

1.15

1.8

1.6065

NCF42-66-*#☆

42U

600

700

2000

0.65

0.75

2.0

0.845

NCF42-68-*#☆

42U

600

900

2000

0.65

0.95

2.0

1.105

NCF42-610-*#☆

42U

600

1100

2000

0.65

1.15

2.0

1.365

NCF42-88-*#☆

42U

800

900

2000

0.85

0.95

2.0

1.445

NCF42-810-*#☆

42U

800

1100

2000

0.85

1.15

2.0

1.785

NCF47-66-*#☆

47U

600

700

2200

0.65

0.75

2.2

0.9295

NCF47-68-*#☆

47U

600

900

2200

0.65

0.95

2.2

1.2155

NCF47-610-*#☆

47U

600

1100

2200

0.65

1.15

2.2

1.5015

NCF47-88-*#☆

47U

800

900

2200

0.85

0.95

2.2

1.5895

NCF47-810-*#☆

47U

800

1100

2200

0.85

1.15

2.2

1.9635

*=Front door (A=steel casement door B=Curved perforated door  L=double swing steel door N=Smoky-gray glass door with both sides punched)

#=Rear door ((A=steel casement door B=Curved perforated door L=double swing steel door N=Smoky-gray glass door with both sides punched))

☆=Colors A=Black(RAL9004),B=Gray(RAL7044)
