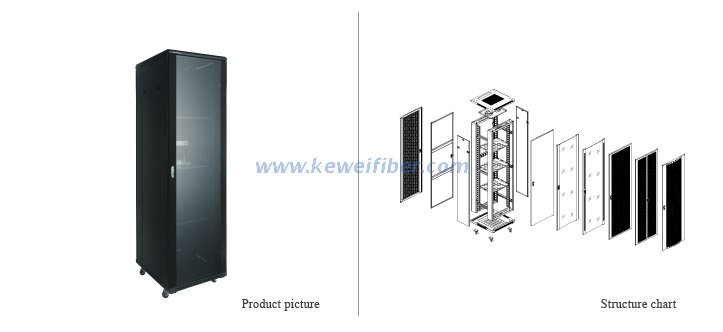

NCB Server Cabinet

Comply with ANSI/EIARS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7, GB/T3047.2-92 standard. Compatible with metric ETSI and 19 inch international standard.


APPLICATION

Widely applied in finance, securities and data center; adopted by the professional servers’ network providers as IBM, SUN, HP, COMPAQ, DELL etc.


MATERIALS

Cold-rolled steel sheet. Thickness for frame 1.2mm, mounting rail
2.0mm(1.5mm for 600mm depth cabinet), fixed shelf 1.2mm , side
panel 1.2mm. Thickness for smoky grey glass 5mm.

Quantity:
  • NCB
  • Exquisite design with precise craftsmanship
  • Good compatibility, adapt to more servers. Perfect ventilation
  • Vented front door and rear door enable ventilation and reliable operation
  • The top and bottom wiring channel can be closed and adjusted.
  • Optional plinth to meet under base wiring, ventilation and rat-proof
  • Rack’s side panel can be easily assembled
  • Adjustable feet and heavy duty castors are available at the same time ,
    static loading: 800kg.(with adjustable feet).
  • Advanced lock
  • Surface finish: degreasing, pickling, phosphating, powder coating
  • Available in black and gray
  • Height, width, and depth selectable, full range of optional accessories.

Part No

Capacity/U

Width/mm

Depth/mm

Height/mm

CM/Width/m

CM/Depth/m

CM/Height/m

Volume/(M3

NCB18-66-*#☆

18U

600

600

988

0.63

0.63

1.02

0.40

NCB22-66-*#☆

22U

600

600

1166

0.63

0.63

1.2

0.48

NCB22-68-*#☆

22U

600

800

1166

0.63

0.83

1.2

0.63

NCB27-66-*#☆

27U

600

600

1388

0.63

0.63

1.42

0.56

NCB32-66-*#☆

32U

600

600

1610

0.63

0.63

1.64

0.65

NCB32-68-*#☆

32U

600

800

1610

0.63

0.83

1.64

0.86

NCB37-66-*#☆

32U

600

600

1833

0.63

0.63

1.86

0.74

NCB37-68-*#☆

37U

600

800

1833

0.63

0.83

1.86

0.97

NCB37-610-*#☆

37U

600

1000

1833

0.63

1.04

1.86

1.22

NCB37-88-*#☆

37U

800

800

1833

0.83

0.83

1.86

1.28

NCB37-810-*#☆

37U

800

1000

1833

0.83

1.04

1.86

1.61

NCB42-66-*#☆

42U

600

600

2055

0.63

0.63

2.08

0.83

NCB42-68-*#☆

42U

600

800

2055

0.63

0.83

2.08

1.09

NCB42-610-*#☆

42U

600

1000

2055

0.63

1,04

2.08

1.36

NCB42-611-*#☆

42U

600

1100

2055

0.63

1.14

2.08

1.49

NCB42-612-*#☆

42U

600

1200

2055

0.63

1.24

2.08

1.62

NCB42-86-*#☆

42U

800

600

2055

0.83

0.63

2.08

1.09

NCB42-88-*#☆

42U

800

800

2055

0.83

0.83

2.08

1.43

NCB42-810-*#☆

42U

800

1000

2055

0.83

1.04

2.08

1.80

NCB47-66-*#☆

47U

600

600

2277

0.63

0.63

2.3

0.91

NCB47-68-*#☆

47U

600

800

2277

0.63

0.83

2.3

1.20

NCB47-610-*#☆

47U

600

1000

2277

0.63

1.04

2.3

1.51

NCB47-88-*#☆

47U

800

800

2277

0.83

0.83

2.3

1.58

NCB47-810-*#☆

47U

800

1000

2277

0.83

1.04

2.3

1.99



Part number configuration tool:

  • NCB18---66 ( 18U)

NCB 18-66 ( x) Use the x to specify the capability of the cabinets:

  • 18= 18 U 22 = 22 U 27 = 27 U 32 = 32U 42=42U 46= 46U
