The merits of MTP/MPO trunk cable generally include:
High quality—MPO trunk cables are factory pre-terminated, tested and packaged along with the test reports. These reports serve as long-term documentation and quality control.
Decreasing cable volume—MPO trunk cables have very small diameters, which decrease the cable volume and improve the air-conditioning conditions in data centers.
Time saving—With the special plug and play design, MPO trunk cables can be incorporated and immediately plugged in. It greatly helps reduce the installation time.

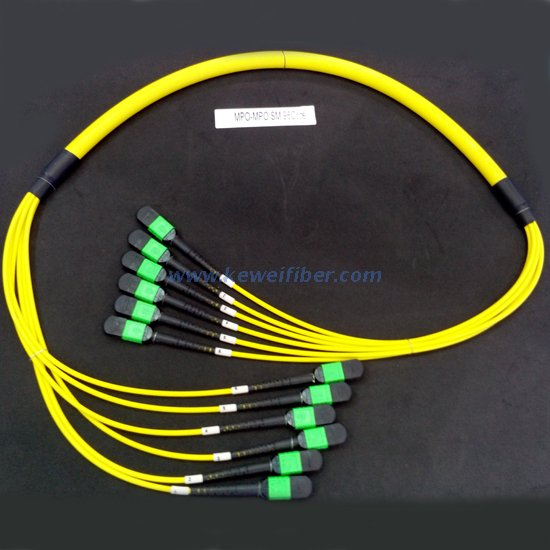

MPO Fiber Trunk Patch cable is terminated with MPO connector on both ends. All of OMC’s MPO Connectors are from Senko/Nissin/Sumitomo. MPO Trunk cable is a kind of high density cable assemblies which is generally use in three areas.
MPO products’ Standard:
-Optical Internetworking Forum (OIF) Compliant
-InfiniBand Compliant
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
- QSFP
Pre-terminated MTP Technology-Polarity
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
Please Note: When it is connected with two 40G QSFP+ transceivers, please choose the Type B Cross as polarity; when it is connected with other equipment such as MPO LGX Cassette, you can choose any of the polarities as you need.
MPO patch cord’s Specification:
MPO Interference index
| Connector type | Testing items | Min | Max |
| MPO PC | ROC_X(abs)(mm) | 500 | \ |
| ROC_Y(abs)(mm) | 50 | \ | |
| Angle_X(deg) | -0.2 | 0.2 | |
| Angle_Y(deg) | -0.2 | 0.2 | |
| Max.DH.All Fiber(nm) | -600 | 600 | |
| Max.DH.Ave(nm) | -300 | 300 | |
| Max.DH.Adj(nm) | -300 | 300 | |
| Max. Core Dip(nm) | -300 | 300 | |
| Fiber height(nm) | -300 | 300 | |
| ROC_X(abs)(mm) | 1000 | 3000 | |
| MPO APC | ROC_X(abs)(mm) | 500 | \ |
| ROC_Y(abs)(mm) | 50 | \ | |
| Angle_X(deg) | -0.2 | 0.2 | |
| Angle_Y(deg) | 7.8 | 8.2 | |
| Max.DH.All Fiber(nm) | -600 | 600 | |
| Max.DH.Ave(nm) | -300 | 300 | |
| Max.DH.Adj(nm) | -300 | 300 | |
| Fiber height(nm) | | |
Cable Structure:
Features:
The merits of MTP/MPO trunk cable generally include:
High quality—MPO trunk cables are factory pre-terminated, tested and packaged along with the test reports. These reports serve as long-term documentation and quality control.
Decreasing cable volume—MPO trunk cables have very small diameters, which decrease the cable volume and improve the air-conditioning conditions in data centers.
Time saving—With the special plug and play design, MPO trunk cables can be incorporated and immediately plugged in. It greatly helps reduce the installation time.
MPO Fiber Trunk Patch cable is terminated with MPO connector on both ends. All of OMC’s MPO Connectors are from Senko/Nissin/Sumitomo. MPO Trunk cable is a kind of high density cable assemblies which is generally use in three areas.
MPO products’ Standard:
-Optical Internetworking Forum (OIF) Compliant
-InfiniBand Compliant
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
- QSFP
Pre-terminated MTP Technology-Polarity
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
Please Note: When it is connected with two 40G QSFP+ transceivers, please choose the Type B Cross as polarity; when it is connected with other equipment such as MPO LGX Cassette, you can choose any of the polarities as you need.
MPO patch cord’s Specification:
MPO Interference index
| Connector type | Testing items | Min | Max |
| MPO PC | ROC_X(abs)(mm) | 500 | \ |
| ROC_Y(abs)(mm) | 50 | \ | |
| Angle_X(deg) | -0.2 | 0.2 | |
| Angle_Y(deg) | -0.2 | 0.2 | |
| Max.DH.All Fiber(nm) | -600 | 600 | |
| Max.DH.Ave(nm) | -300 | 300 | |
| Max.DH.Adj(nm) | -300 | 300 | |
| Max. Core Dip(nm) | -300 | 300 | |
| Fiber height(nm) | -300 | 300 | |
| ROC_X(abs)(mm) | 1000 | 3000 | |
| MPO APC | ROC_X(abs)(mm) | 500 | \ |
| ROC_Y(abs)(mm) | 50 | \ | |
| Angle_X(deg) | -0.2 | 0.2 | |
| Angle_Y(deg) | 7.8 | 8.2 | |
| Max.DH.All Fiber(nm) | -600 | 600 | |
| Max.DH.Ave(nm) | -300 | 300 | |
| Max.DH.Adj(nm) | -300 | 300 | |
| Fiber height(nm) | | |
Cable Structure:
Features:
