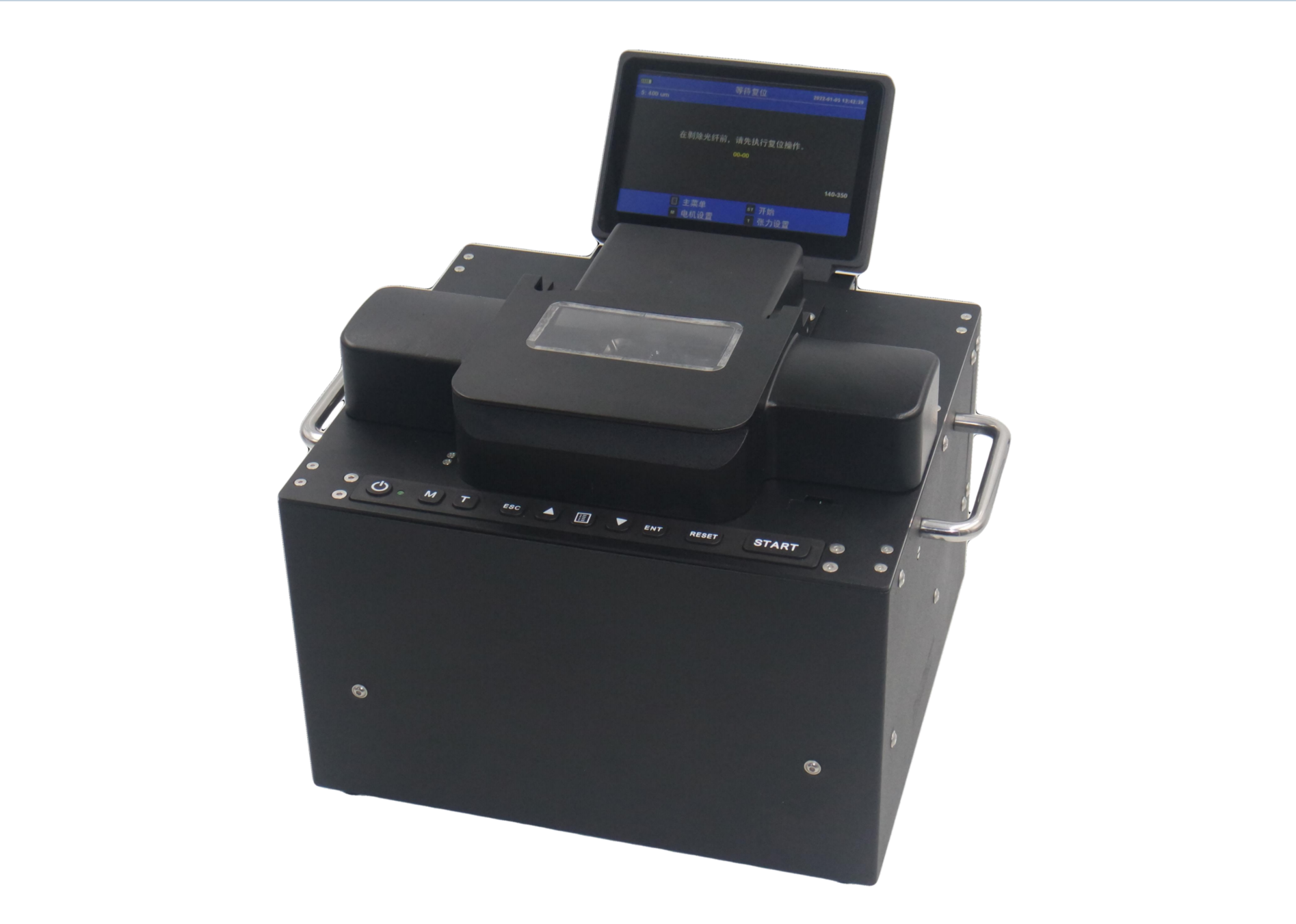

FCS-350
Kewei fiber
Quantity: | |
---|---|
Specification | |
Parameter | Data value |
Type | FCS-350 |
Fiber material | Silica fiber |
Cladding diameter | 60 to 1200 µm |
Coating diameter | 60 to 1500 µm |
Fiber holder type | FC-xx |
Stripper length | 1 to 35mm( window stripper : 1 to 33mm) |
Cleave blade life | 350×4( times) |
Stripper qty | Single core each time |
Stripper time | Coating removing action × 4 : 18 sec Coating removing action × 8 : 35 sec Coating removing action × 16 : 60 sec |
Dimension | 238*215*193mm |
Weight | 6.1kg(with battery) |
Power supply | ACInput: 100 to 240 V ( 50 to 60Hz) DCoutput: 13.5V / 5A Built-in lithium battery : 10.5V, 20400mAh |
Operation Environment | Temperature: 0~+40℃, Humidity: <95%(non-dew), altitude : 0~5000m |
Storage Environment | Temperature: -20~+60℃, Humidity : <95%(no-dew) |
