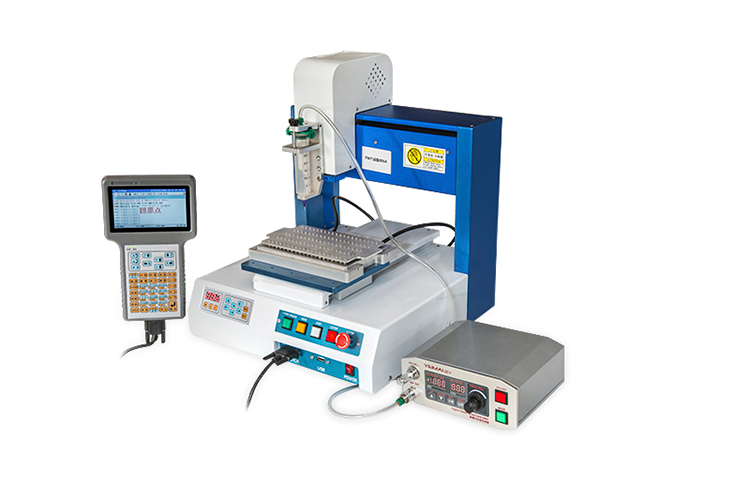

Automatic fiber optic glue injection machine for Patch cord production

Automatic fiber optic glue injection machine for Patch cord production

Stable and reliable performance.
Easy & Convenient operating, high speed and precision.
English/Chinese language switchable.
The F series 3-axis Manipulator works independently, no necessary to connect with other equipments. The installation is convenient and the operating is very easy.
User-friendly operating panel
he operating panel has easy understandable photo signs. It enables users to set the injection path. It can easily finish the matrix copy, offset modification, calibration point setting…. The program can be copy and transferred to other machines.
Professional interpolation control system
The sophisticated control card enable the machine become real PTP and CP 3-axies arc interpolation equipment. It fit for any non planar 3D injection path.
It used for injecting glue to ceramic ferrule.
The machine has needle controlling button. No necessary to connect with instructor. It is more convenient than other similar machines.

Quantity:




Inquire Add to Basket

Product Description

Specification:

Dispensing range X/Y/Z(mm) : 200/200/50
Maximum load: Y-AXIS / Z-AXIS: 8kg / 3kg
Travel speed X&Y / Z (mm/sec): 0.1-800 / 350
Decomposition capacity: 0.01 mm/Axis
Repeatability: +/- 0.02 mm/200
Program recording mode: 100 groups, 4000 points per group (U disk COPY)
Display mode: teaching box LCD (320×240)
Motor System: Micro Motion Stepper Precision Motor
Operating mode: Point-to-point/continuous line segments
Transmission method: Timing belt + precision linear guide
Motion tween function: 3 axis (any route in 3D space)
Edit Mode: Teaching Box / PC
I/O Signal I/O: 8 Inputs / 8 Outputs
External control interface: RS232
Input power: AC110/220V (internal switch conversion) 300W
Working environment temperature: 5~40°C
Working environment humidity: 20 to 90%
Dimensions (WxDxH mm): 413×439×534
Body weight (kg): 28
