| Quantity: | |
|---|---|
<
| Item Description | Use for coupler type | Equipment features |

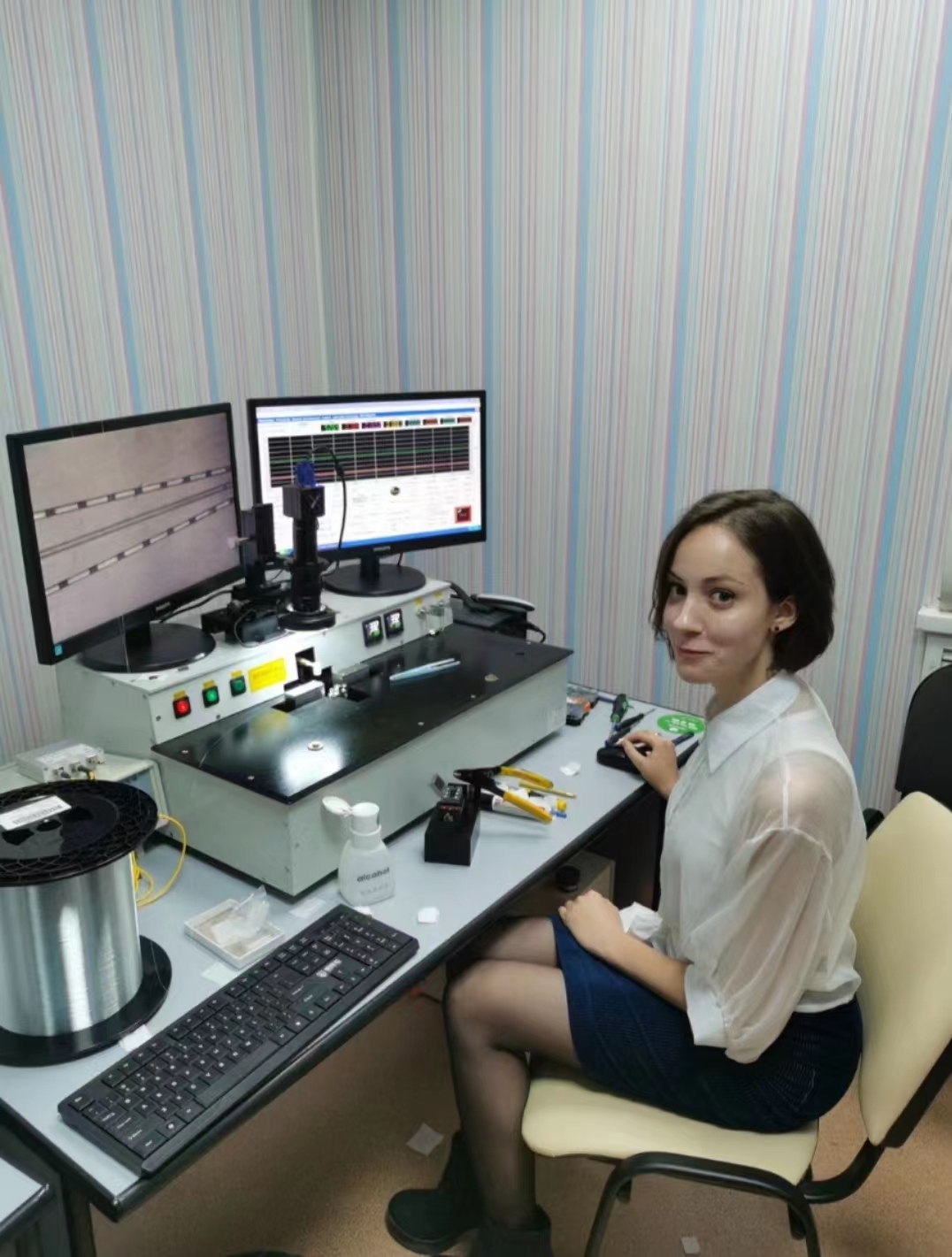

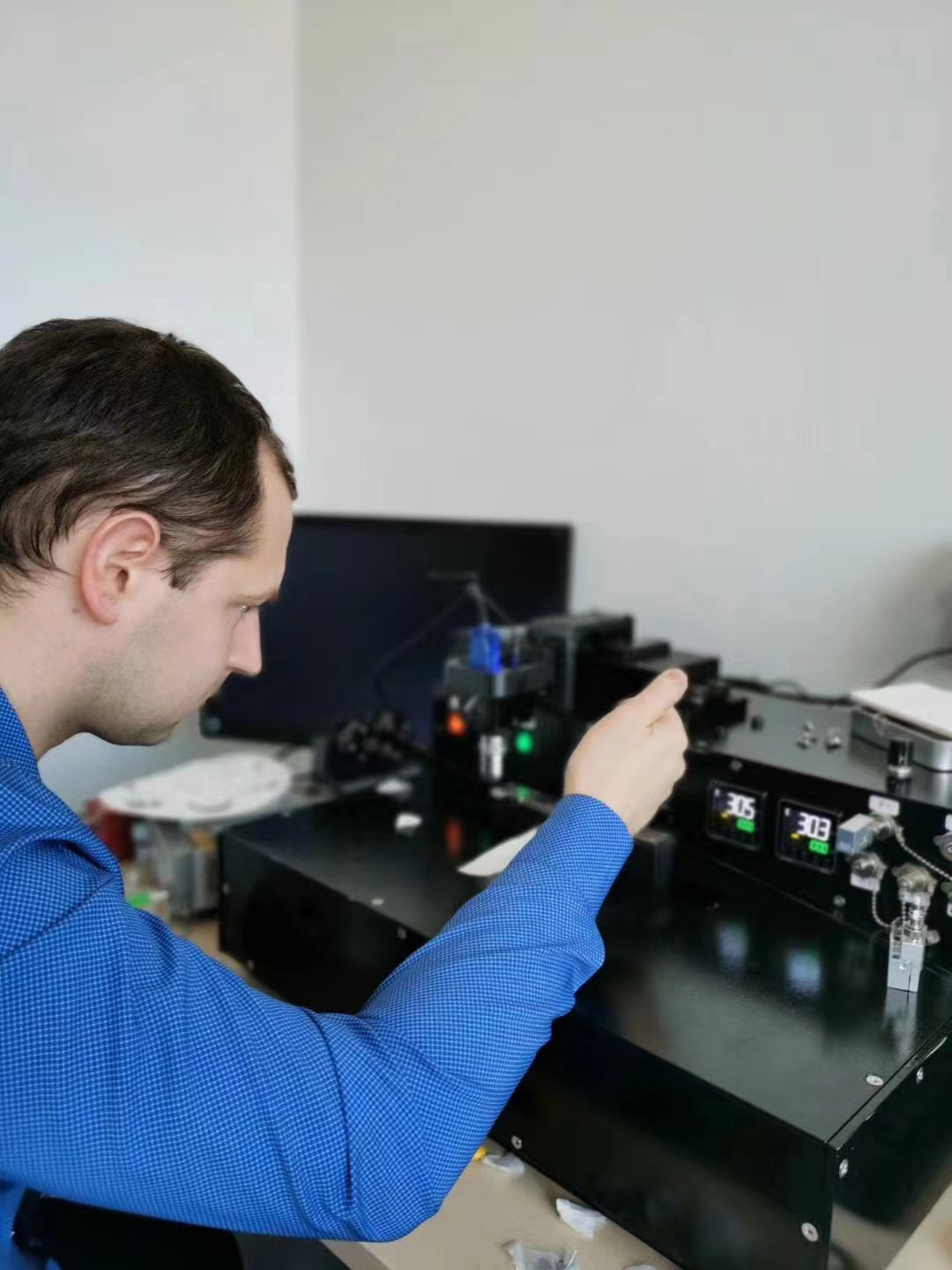

| PM FBT coupler machine | Panda type polarization maintaining fiber coupler | This model adopts 6-axis automatic taper control Software, dedicated hardware for scientific research type taper machine, With easy operation, low failure rate, hardware extension Strong malleability, stretched length can be extended to 1000mm, the torch scan can be based on customer requirements Lengthen to 600mm, equipped with 5-channel detection , Can realize the tapering of polarization-maintaining fiber coupler Function, with two kinds of deviation-maintaining alignment methods |
| 400nm-3um fiber splice fused | ||
| (2+1)*1 fiber combiner | ||
| (6+1)*1 fiber combiner | ||
| (18+1)*1 fiber combiner | ||
| 1310nm or 1550nm Single window coupler | ||
| 1310nm & 1550nm dual window coupler | ||
| 1310nm & 1550nm&1490nm triple window coupler | ||
| 1310nm、1550nm（WDM） | ||
| 980nm、1550nm（WDM） | ||
| 1310m or1550nm 1*3 fused coupler | ||
| 1310nm or 1550nm 1*4 fused coupler | ||
| PM WDM 1550/980nm |
<
| Equipment Hardware | Hardware function | Hardware accuracy |
| Spindle stretching platform | The stretching platform developed by imported professional precision motion component manufacturers | |
| Stretching distance | Two-way screw back movement, stretching range 0-80mm (can be lengthened) | ≤2um |
| Fiber holder | Clamping 250um 1*2-1*3 coupler general-purpose parallel burned fiber Automatic and tight vacuum adsorption, easy to operate | ≤2um |
| Fire head movement | Automatic adjustment of precision sliding table with three-dimensional stepping motor | ≤0.5um |
| Torch size | Conveniently change the inner diameter of the tapered torch of various sizes (φ 12mm/φ 10mm) | ≤0.1mm |
| Package fixture | Two-dimensional stepping motor is used for automatic adjustment of precision sliding table | ≤0.5um |
| Package size | Support the outer diameter of quartz substrate (φ 1.38mm/φ 1.8mm) | ≤0.1mm |
| Gas flow | Software automatic control can be changed according to stretch length or stretch time segment Change real-time traffic | |
| Precision hydrogen flow meter | SEVENSTAR ELECTRONIC 300ml high-precision hydrogen flow meter | ≤0.2% |
| Precision oxygen flow meter | SEVENSTAR ELECTRONIC 100ml high precision hydrogen flow meter | ≤0.2% |
<
