Only 16 screws are needed in order to assemble the cabinet. All remaining elements are mounted without tools.
The base of cabinet structure includes frames with factory installed doors connected with vertical beams.
Rack rails, made of cold-rolled steel of 2mm in thickness are mounted on latches.

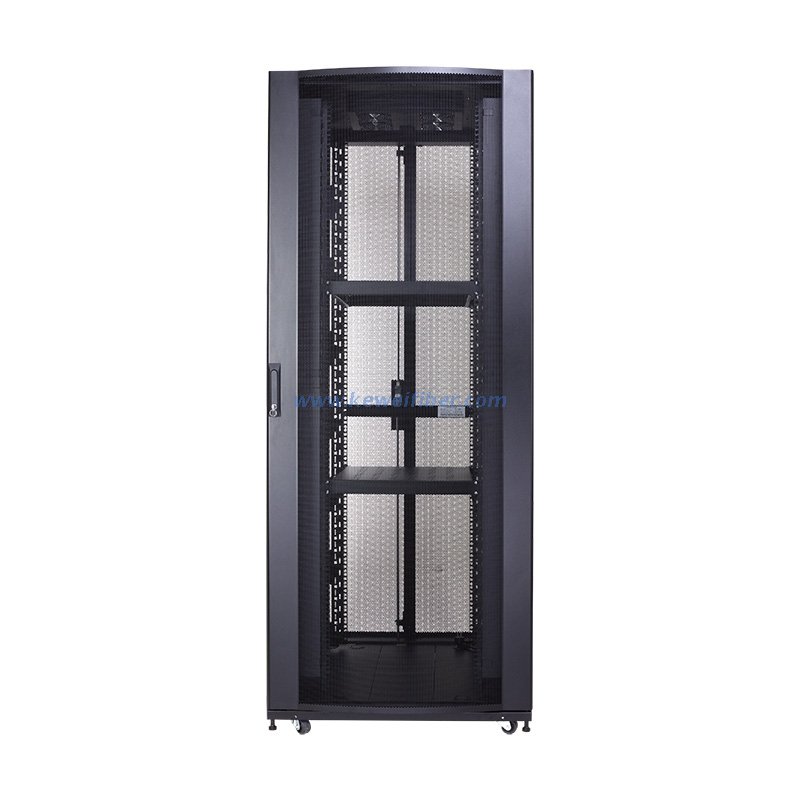

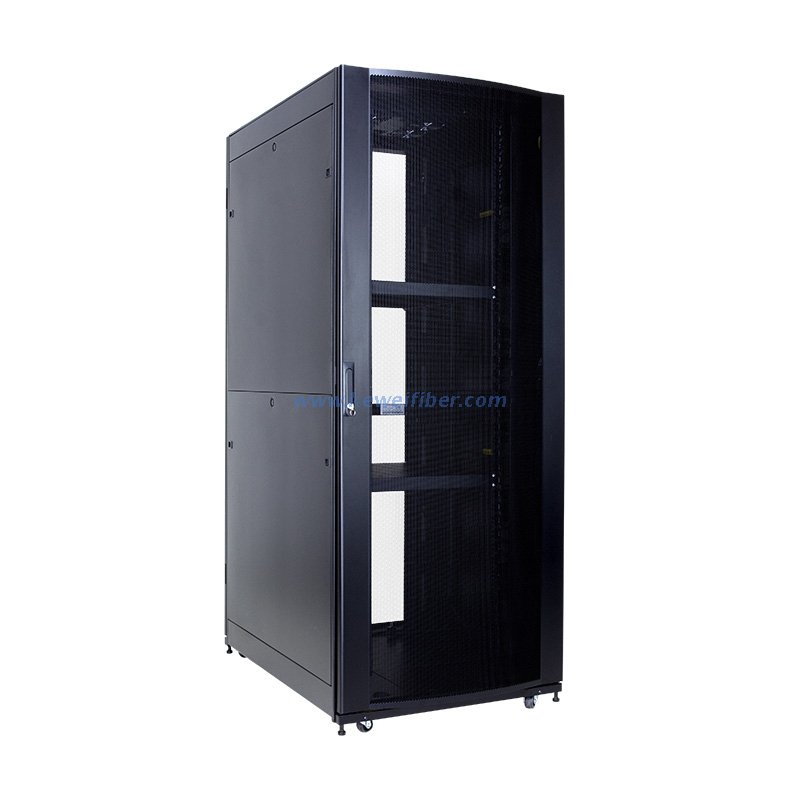

The doors are made of perforated steel - curved in the front and two-leaf flat in the back. They provide equipment protection and excellent air circulation. Side doors consist of two panels with a lock assembly option.
The roof panel and a three-element floor are mounted on latches. The roof panel is equipped with five brush ducts, while the floor panel is equipped with eight round ducts with diameter of 50mm.
Two vertical organizers mounted on rack rails which allow to keep cabling in order are an additional advantage.
The set also includes an earthing kit.
Thanks to a set of shelves, a power strip and a ventilation fan as standard equipment, the product is ready to use without any additional expenses, while a wide range of optional accessories allows to expand the installation further on.
Load capacity of NCI-series products is 1000kg. The cabinets are available in black RAL9004.
