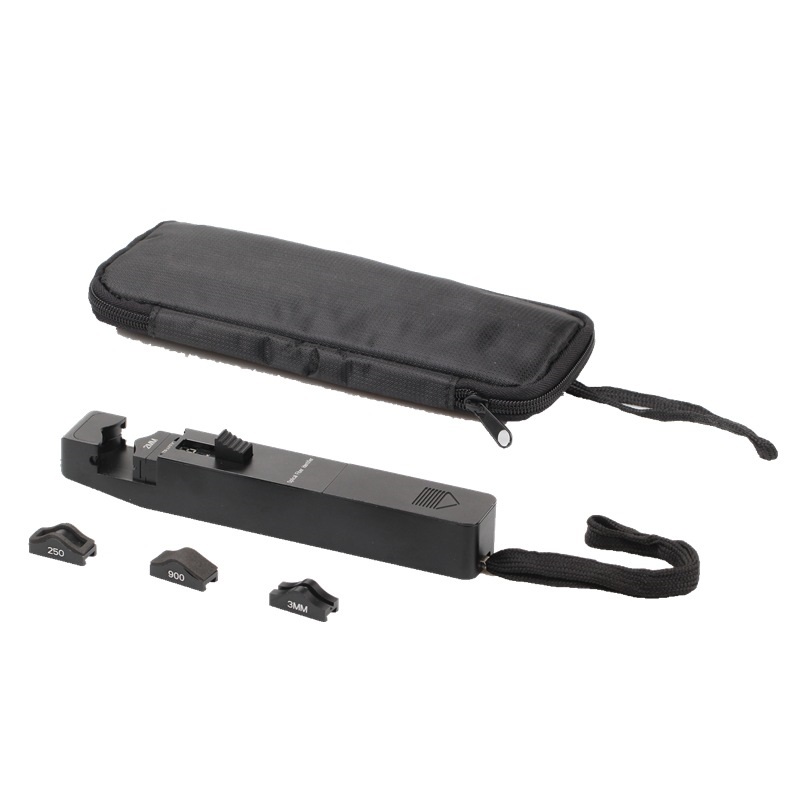

Optical Fiber Identifier All-in-one Chuck Live with 10mw VFL 800nm-1700nm Fiber Detector Fiber Traffic Identifier OFI

Features:
-Easy-to-use with "ONE KEY" operation
-Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning
-Low bending loss and highly efficient output
-Easy-to-replace adaptors (Φ0.25, Φ0.9, Φ2.0, Φ3.0 to match various optical cables)
-Mechanical damp design of adapter heads to ensure the fiber without damage
-Durable metal housing and quality construction
· Compact size, Portable and rugged, Easy to use
· Power supply: 3xAAA batteries or AC adapter power supply
· Optional Interchangeable Universal 2.5&1.25mm adaptor
· Please enquire for special options
  • 800-1700 nm

  • Kewei

  • KW-78A

Availability:
Quantity:
sharethis sharing button

Specifications:

ModelKW-78A
Identified Wavelength Range800-1700 nm
Identified Signal TypeCW, 270Hz±5%,1kHz±5%,2kHz±5%
Detector TypeΦ1mm InGaAs 2pcs
Adapter TypeΦ0.25 (Applicable for Bare Fiber)
Φ0.9 (Applicable for Φ0.9 Cable )
Φ2.0 (Applicable for Φ2.0 Cable )
Φ3.0 (Applicable for Φ3.0 Cable )
Signal DirectionLeft & Right LED
Optical Power Reading-40~+0dBm
Signal Frequency270Hz, 1kHz, 2kHz
Power Supply2 AAA battery
Operating Temperature-10~+50℃
Storage Temperature-20~+70℃
Dimension (mm)195X30X27
Weight235g
