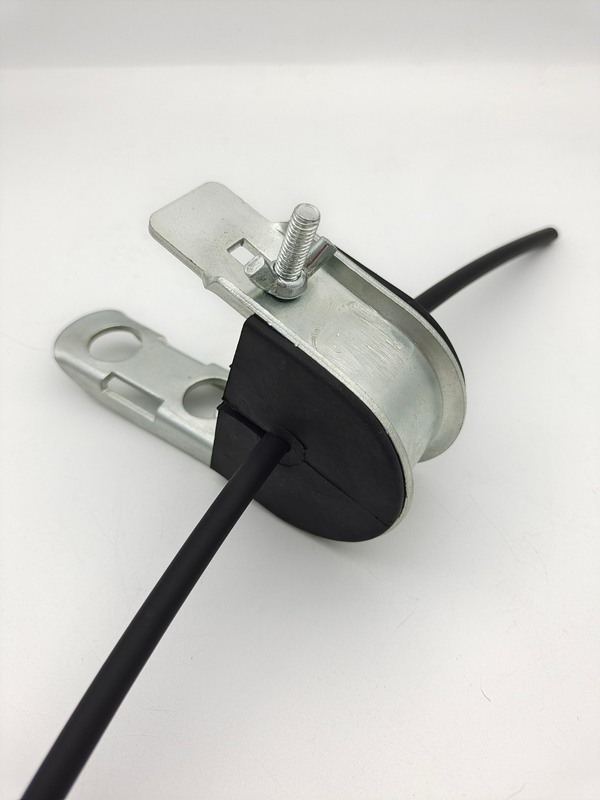

J Type Suspension Clamp for ADSS Cable

hook clamps are designed to provide a suspension for 10 to 20mm aerial ADSS cables at intermediate poles on cable routes with angle< 20° on access networks (spans up to 100m).

Benefits
• Two sizes to cover the full range of ADSS cables from 10 to 20mm..
• Installation in just a few seconds with a 13 mm standard 6-point spanner.
• The shape of the J Hook allows a running out of the cable directly in the hook
• The suspension clamps can be directly secured to the poles using bolts or bandings. They can also be installed on hook bolts to provide some flexible suspension point and give extra protection to the cable against wind induced vibrations
  • J hook

  • Kewei fiber

Quantity:
sharethis sharing button

Reference Capacity Material Weight(kg)
Body Insert Screw
HC-5-8 5-8MM Galvanized steel UV protected neoprene Protected steel 0.19
HC-8-12 8-12MM
HC-10-15 10-15mm
HC-15-20 15-20mm
