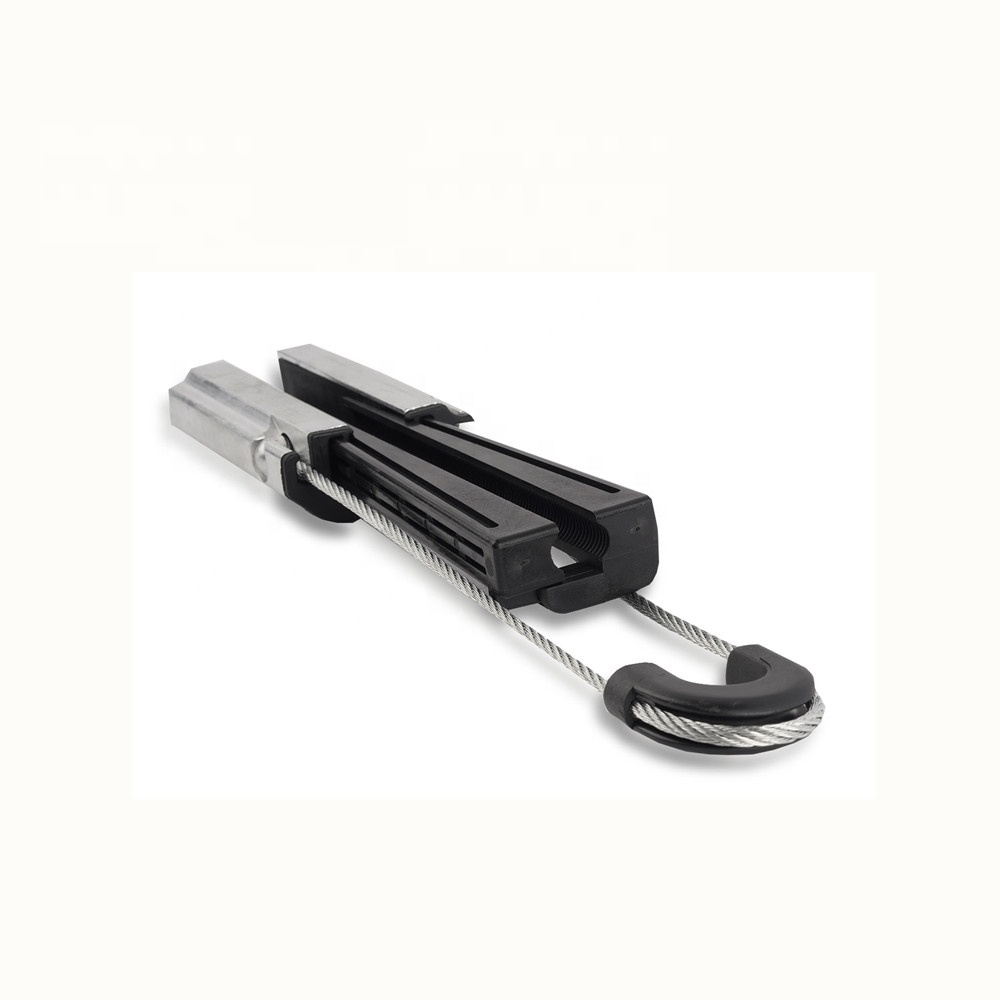

Fiber optic FTTH drop cable clamp for fiber optic cable installation
Anchor or tension clamps for all dielectric self-supporting cable (ADSS) are developed as a solution for aerial round fiber optic cables of different diameters. These optical fiber fittings installed on short spans (up to 100 meters). ADSS strain clamp is enough to keep the aerial bundled cables in tight strength position, and appropriate mechanical resistance archived by conical body and wedges, which does not allow the cable to slip from the ADSS cable accessory The ADSS cable route may be dead-end, double dead-ending or double anchoring.
Application: The JBG Clamp is used to fix the line at the end bracket, suitable for the type 2 self-supporting insulated wire which is complied with national standards.
Features: 1) The body is made of corrosion resistant aluminuim alloy. 2) Bail is made of stainless steel 3) Wedges are made of weather resistant material. 4) Standard: NFC33-041 EN50483-3
Item No.
Conductor(mm)
Breaking load
JBG-1000
8-11
10KN
JBG-1500
11-14
15KN
JBG-2000
14-18
22KN
Application: The JBG Clamp is used to fix the line at the end bracket, suitable for the type 2 self-supporting insulated wire which is complied with national standards.
Features: 1) The body is made of corrosion resistant aluminuim alloy. 2) Bail is made of stainless steel 3) Wedges are made of weather resistant material. 4) Standard: NFC33-041 EN50483-3
