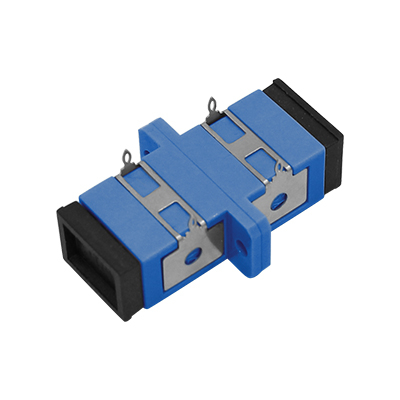

SC Simplex adapter
Kewei fiber
Quantity: | |
---|---|
Fiber optic adapter, also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. And each fiber optic Adapter is functionally tested before shipping.
Application
◉Telecommunication Networks ◉Local Area Networks (LANs) ◉Communication System | ◉ Premise Installations ◉ Wide Area Networks (WANs) ◉ Video Transmission | ◉ Connections Between Patchcords ◉ FTTX, CATV ◉ Connections Between Devices |
Specification
parameter | SC Adaptor | |||
SM | MM | |||
PC | UPC | APC | PC | |
Insertion loss | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.2dB |
Alternationg loss | ≤0.2dB | |||
Repeatability | ≤0.2dB | |||
Durability | The change of 1000 interpolation times is less than 0.2dB | |||
Working temperature | -40~85°C | |||
Storage temperature | -40~85°C |
Fiber optic adapter, also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. And each fiber optic Adapter is functionally tested before shipping.
Application
◉Telecommunication Networks ◉Local Area Networks (LANs) ◉Communication System | ◉ Premise Installations ◉ Wide Area Networks (WANs) ◉ Video Transmission | ◉ Connections Between Patchcords ◉ FTTX, CATV ◉ Connections Between Devices |
Specification
parameter | SC Adaptor | |||
SM | MM | |||
PC | UPC | APC | PC | |
Insertion loss | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.2dB |
Alternationg loss | ≤0.2dB | |||
Repeatability | ≤0.2dB | |||
Durability | The change of 1000 interpolation times is less than 0.2dB | |||
Working temperature | -40~85°C | |||
Storage temperature | -40~85°C |
