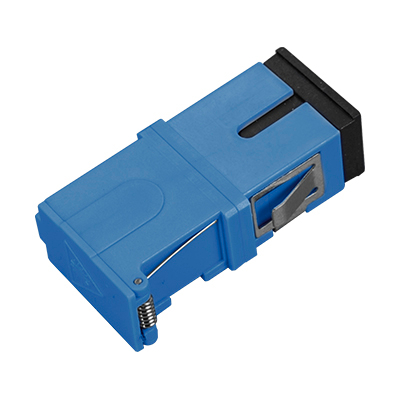

SC Simplex Fiber Optic Adapter with shutter without flange

Adapter Type: SC Body Style: Simplex
Connector Polish Type: PC
Connector Fiber Mode: Multi mode (OM4)
Insertion Loss: ≤0.2dB
Durability: >1000times
Mounting Type: Without Flange Aligment Sleeve Material: Ceramic
Color: Violet,blue, aqua, beige
  • SC adapter with shutter without flange

  • Kewei fiber

Quantity:
sharethis sharing button

Fiber optic adapter, also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.

By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. And each fiber optic Adapter is functionally tested before shipping.

20200304145547_11738
Application



Telecommunication Networks
Local Area Networks (LANs)
Communication System












◉ Premise Installations
◉ Wide Area Networks (WANs)
◉ Video Transmission










 Connections Between Patchcords
 FTTX, CATV
 Connections Between Devices





Specification



parameter LC Adaptor
SM MM
PC UPC APC PC
Insertion loss ≤0.2dB ≤0.2dB ≤0.2dB ≤0.2dB
Alternationg loss ≤0.2dB
Repeatability ≤0.2dB
Durability The change of 1000 interpolation times is less than 0.2dB
Working temperature -40~85°C
Storage temperature -40~85°C
