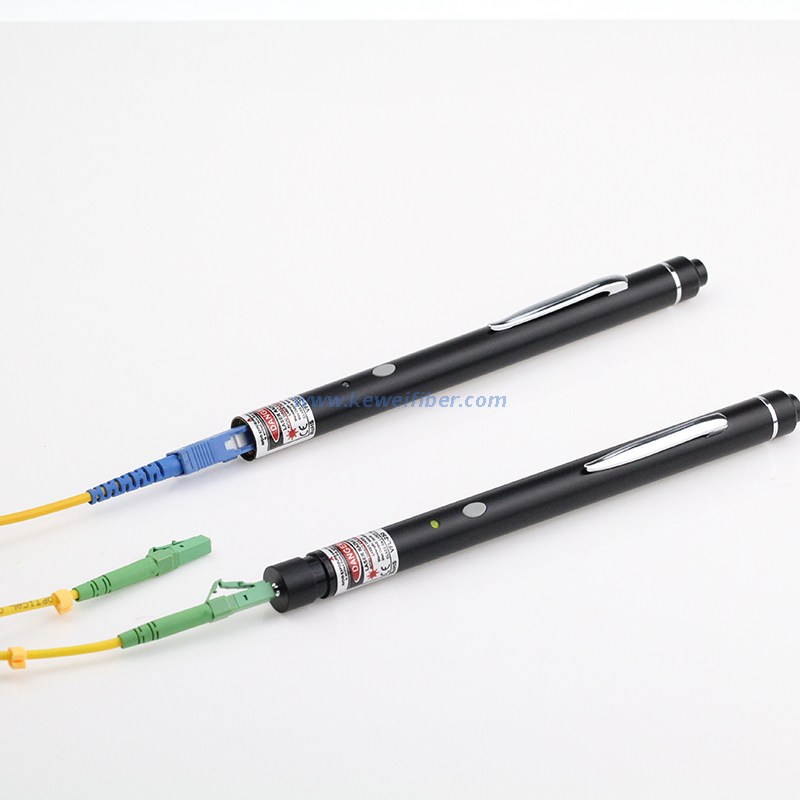

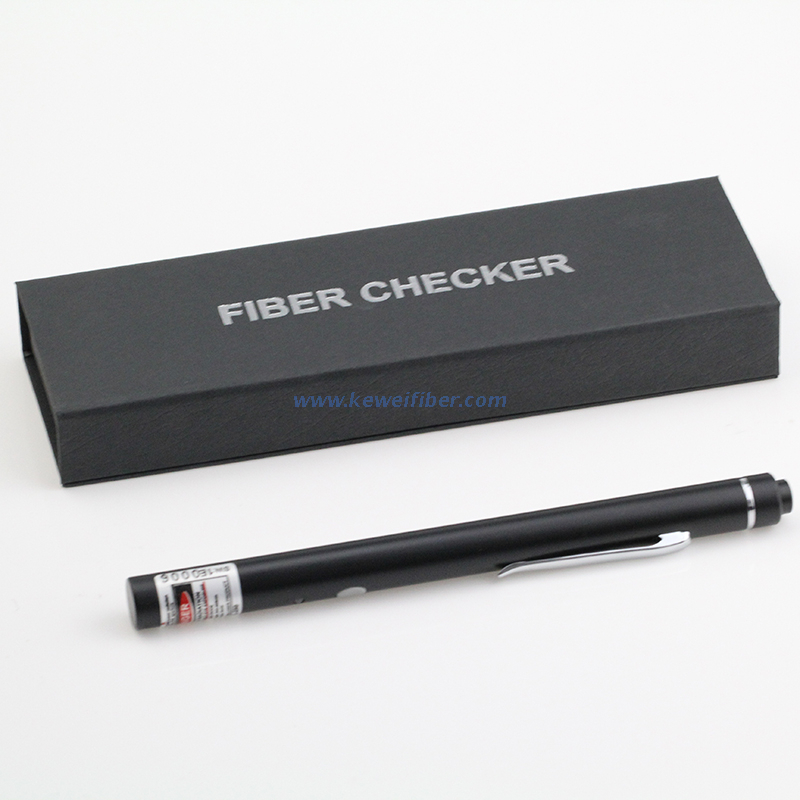

Pen-Type Visual Fault Locator

- Competitively priced, Pocket-size pen design
- Visual Fault Locator is equipped with a 650-nm visible laser diode
- operates in continuous or pulse modes for clear noticeable results
- Push button operate CW / Mod. (2.5 Hz frequency) / pause
- Green LED indicator shows the operating mode
- Power switch on the end for battery on / off
- Protective cap for extra protection
- 2.5mm Universal connector
- 1.25mm adapter available
  • VFL-250 | VFL-1000

  • Kewei

  • VFL-250 | VFL-1000

Quantity:
sharethis sharing button

Specifications;



Model

VFL-125

VFL-250

VFL-1000

Central Wavelength

650 +/- 10 nm

Output Power

5mW

 10mW

Connector Type

1.25mm Ferrule

 Universal 2.5mm

Transmission

CW or 2.5 Hz pulse

Batteries

2 x AAA Alkaline batteries

Operating Temp.

0 ~ 50

Detect Distance

Up to 6 Km

Up to 18 Km

Light Source

Class 3A Laser Diode

Class 3B Laser Diode

Dimension/Weight

13.5 mm X 170 mm / 88 g



 ----------------------------------------------------------------

Ordering Information:

VFL-250   : 5mW Visual Fault Locator
VFL-1000 :10mW Visual Fault Locator
VFL-125   : 5mW Visual Fault Locator (with 1.25mm Ferrule)
AD-125    : 1.25mm Adaptor for VFL-250 Visual Fault Locator
