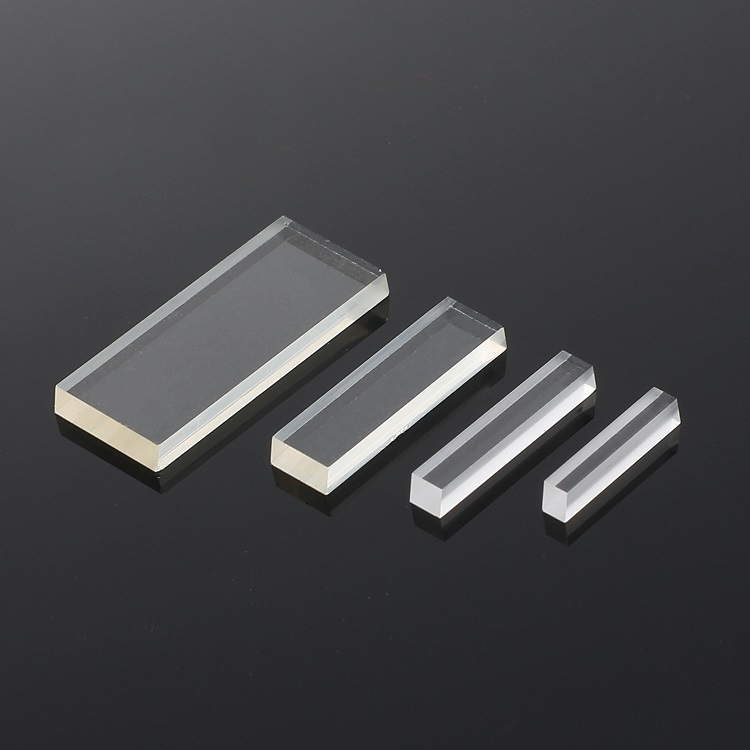

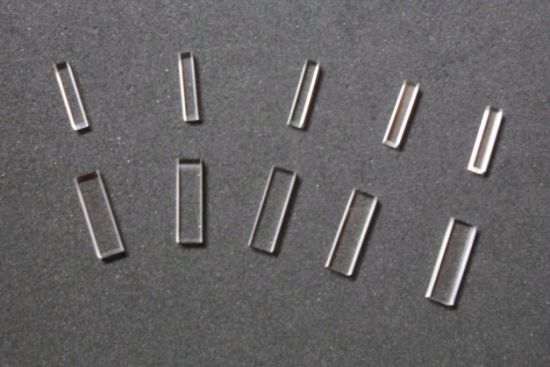

1*N,2*N
| Quantity: | |
|---|---|
| 1xN | ||||||||||||||
| Type | Grade | Unit | 1x2 | 1x3 | 1x4 | 1x6 | 1x8(F) | 1x8(H) | 1x12 | 1x16 | 1x24 | 1x32 | 1x64 | 1x128 |
| Insertion Loss, Max | Premium | dB | 3.4 | 5.8 | 6.7 | 8.8 | 9.8 | 9.8 | 11.8 | 12.9 | 15.5 | 16.1 | 19.2 | 23 |
| Sandard | dB | 3.6 | 6 | 6.9 | 9 | 10 | 10 | 12 | 13.1 | 15.8 | 16.4 | 19.8 | 23.5 | |
| PD Loss | Premium | dB | 0.1 | 0.2 | 0.15 | 0.2 | 0.15 | 0.15 | 0.2 | 0.18 | 0.25 | 0.2 | 0.2 | 0.3 |
| Sandard | dB | 0.15 | 0.25 | 0.2 | 0.25 | 0.2 | 0.2 | 0.25 | 0.23 | 0.3 | 0.25 | 0.25 | 0.35 | |
| Uniformity, Max | Premium | dB | 0.4 | 0.5 | 0.5 | 0.6 | 0.6 | 0.6 | 0.8 | 0.7 | 1.5 | 0.8 | 1 | 1.8 |
| Sandard | dB | 0.5 | 0.6 | 0.6 | 0.8 | 0.7 | 0.7 | 1 | 0.8 | 1.8 | 1.1 | 1.5 | 2 | |
| Working Wavelength | | nm | 1260~1650 | |||||||||||
| Return Loss | | dB | ≥55 | |||||||||||
| Directivity | | dB | ≥55 | |||||||||||
| Operating Tempreature | | ºC | -40~+85 | |||||||||||
| Storage Temperature | | ºC | -40~+85 | |||||||||||
| PD Loss--Parlorization Dependent Loss,testing condition 1310nm~1550nm | ||||||||||||||
| F--Output channel core pitch=250um, H--Output channel core pitch=127um | ||||||||||||||
| 2xN | |||||||||
| Type | Grade | Unit | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 | 2x128 |
| Insertion Loss, Max | Premium | dB | 3.9 | 7 | 10 | 13.4 | 16.5 | 20 | 23.5 |
| Sandard | dB | 4.2 | 7.3 | 10.4 | 13.9 | 17 | 20.5 | 24 | |
| PD Loss | Premium | dB | 0.15 | 0.15 | 0.2 | 0.2 | 0.2 | 0.2 | 0.35 |
| Sandard | dB | 0.2 | 0.2 | 0.25 | 0.25 | 0.25 | 0.25 | 0.4 | |
| Uniformity, Max | Premium | dB | 0.6 | 0.8 | 0.8 | 1 | 1.2 | 1.8 | 2.2 |
| Sandard | dB | 1 | 1.2 | 1.2 | 1.5 | 1.8 | 2 | 2.5 | |
| Working Wavelength | | nm | 1260~1650 | ||||||
| Return Loss | | dB | ≥55 | ||||||
| Directivity | | dB | ≥55 | ||||||
| Operating Tempreature | | ºC | -40~+85 | ||||||
| Storage Temperature | | ºC | -40~+85 | ||||||
| PD Loss--Parlorization Dependent Loss,testing condition 1310nm~1550nm | |||||||||
| | |||||||||
| 1xN | ||||||||||||||
| Type | Grade | Unit | 1x2 | 1x3 | 1x4 | 1x6 | 1x8(F) | 1x8(H) | 1x12 | 1x16 | 1x24 | 1x32 | 1x64 | 1x128 |
| Insertion Loss, Max | Premium | dB | 3.4 | 5.8 | 6.7 | 8.8 | 9.8 | 9.8 | 11.8 | 12.9 | 15.5 | 16.1 | 19.2 | 23 |
| Sandard | dB | 3.6 | 6 | 6.9 | 9 | 10 | 10 | 12 | 13.1 | 15.8 | 16.4 | 19.8 | 23.5 | |
| PD Loss | Premium | dB | 0.1 | 0.2 | 0.15 | 0.2 | 0.15 | 0.15 | 0.2 | 0.18 | 0.25 | 0.2 | 0.2 | 0.3 |
| Sandard | dB | 0.15 | 0.25 | 0.2 | 0.25 | 0.2 | 0.2 | 0.25 | 0.23 | 0.3 | 0.25 | 0.25 | 0.35 | |
| Uniformity, Max | Premium | dB | 0.4 | 0.5 | 0.5 | 0.6 | 0.6 | 0.6 | 0.8 | 0.7 | 1.5 | 0.8 | 1 | 1.8 |
| Sandard | dB | 0.5 | 0.6 | 0.6 | 0.8 | 0.7 | 0.7 | 1 | 0.8 | 1.8 | 1.1 | 1.5 | 2 | |
| Working Wavelength | | nm | 1260~1650 | |||||||||||
| Return Loss | | dB | ≥55 | |||||||||||
| Directivity | | dB | ≥55 | |||||||||||
| Operating Tempreature | | ºC | -40~+85 | |||||||||||
| Storage Temperature | | ºC | -40~+85 | |||||||||||
| PD Loss--Parlorization Dependent Loss,testing condition 1310nm~1550nm | ||||||||||||||
| F--Output channel core pitch=250um, H--Output channel core pitch=127um | ||||||||||||||
| 2xN | |||||||||
| Type | Grade | Unit | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 | 2x128 |
| Insertion Loss, Max | Premium | dB | 3.9 | 7 | 10 | 13.4 | 16.5 | 20 | 23.5 |
| Sandard | dB | 4.2 | 7.3 | 10.4 | 13.9 | 17 | 20.5 | 24 | |
| PD Loss | Premium | dB | 0.15 | 0.15 | 0.2 | 0.2 | 0.2 | 0.2 | 0.35 |
| Sandard | dB | 0.2 | 0.2 | 0.25 | 0.25 | 0.25 | 0.25 | 0.4 | |
| Uniformity, Max | Premium | dB | 0.6 | 0.8 | 0.8 | 1 | 1.2 | 1.8 | 2.2 |
| Sandard | dB | 1 | 1.2 | 1.2 | 1.5 | 1.8 | 2 | 2.5 | |
| Working Wavelength | | nm | 1260~1650 | ||||||
| Return Loss | | dB | ≥55 | ||||||
| Directivity | | dB | ≥55 | ||||||
| Operating Tempreature | | ºC | -40~+85 | ||||||
| Storage Temperature | | ºC | -40~+85 | ||||||
| PD Loss--Parlorization Dependent Loss,testing condition 1310nm~1550nm | |||||||||
| | |||||||||
