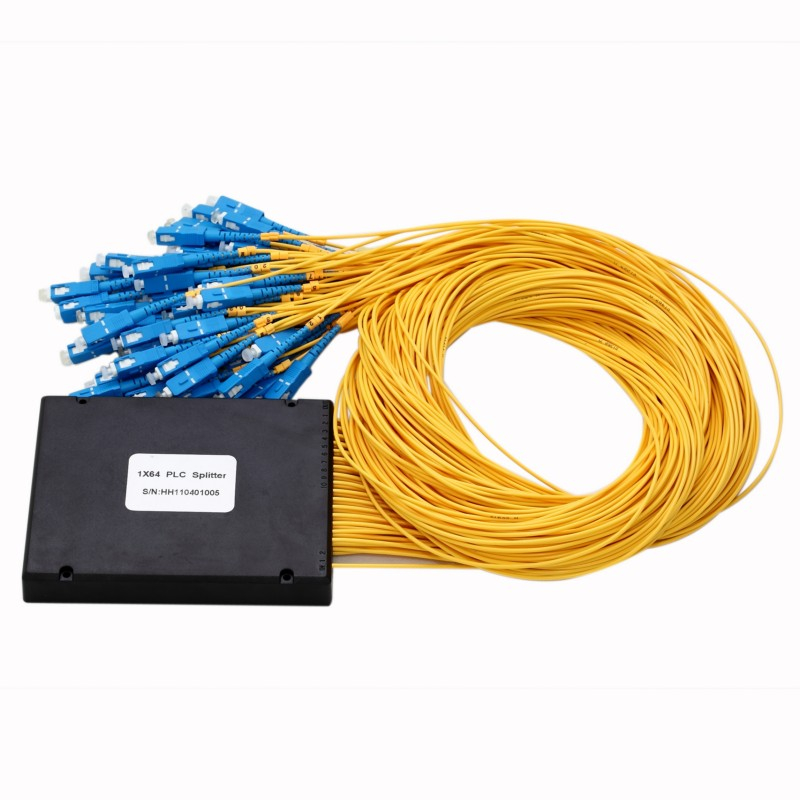

1*64 PLC splitter Module type with SC/PC connectors

PLC splitter is a high quality passive device. It is especially for passive internet (EPON, BPON, and GPON). And different package can follow clients’ different inquiry.

Quantity:
  • 属性值

Features:

  1. Low Insertion loss
  2. Low PDL (Polarization Dependent Loss)
  3. Wide Operating Wavelength: From 1260nm to 1650nm
  4. Excellent Environmental & Mechanical Stability


Applications:

  1. FTTX (FTTB, FTTH, FTTC) Systems
  2. Cable Television (CATV)
  3. Optical Signal Distribution
  4. Passive Optical Network (PON)



Specification:



Table 1 – 1×N PLC Splitter


Parameters 1×2 1×4 1×8 1×16 1×32 1×64
Operating Wavelength (nm) 1260~1650
Fiber Type G657A or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.0
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temperature Stability(-40~85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40~85
Storage Temperature (℃) -40~85
Package Steel Tube or ABS





Table 2 – 2×N PLC Splitter


Parameters 2×2 2×4 2×8 2×16 2×32 2×64
Operating Wavelength (nm) 1260~1650
Fiber Type G657A or customer specified
Insertion Loss (dB) 4.0 7.6 11.0 14.4 17.5 21.0
Loss Uniformity (dB) 0.6 1.0 1.2 1.5 1.8 2.2
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent Loss(dB) 0.2 0.2 0.3 0.3 0.4 0.4
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.4 0.5 0.5 0.5 0.5
Temperature Stability(-40~85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40~85
Storage Temperature (℃) -40~85
Package Steel Tube or ABS


Notes:

  1. Specified without connectors.
  2. Add an additional 0.15dB loss per connector.
