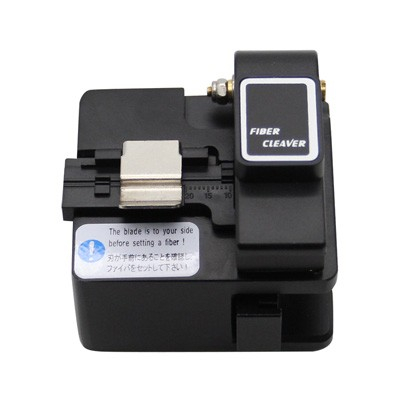

Optic Fiber Cleaver Used in cutting FTTH Fiber Optic Cable

Description

China Fiber Cleaver,is an economic multi-action clever,

high precision preparation for single fibers,

standard length:5~20mm,slim and simple is available for application.



Features

Typical cleave angle:90°± 0.5°.

Compact & handy outfit design.

Adjustable cleave length:5~20mm.

Scratch-free anodized body surface.

Configuration:single(250~900mm),Ribbon(2~12).

High precision cleaving blade with 16 cleave spots.



Application

Fiber Preparation.
Quantity:
  • KWFC-B1
  • Kewei fiber

Fiber Cleaver KWFC-B1 Specification

Item

Performance

Fiber Diameter

100~150um

Coating Diameter

250~900um

Cleave Angle

                   90°± 0.5°

Cleave Length

 Single fiber standard:5~20mm

Blade Lifetime

40000 cleaves

Net Weight

0.27Kg

Dimension

58mm*55mm*48mm
