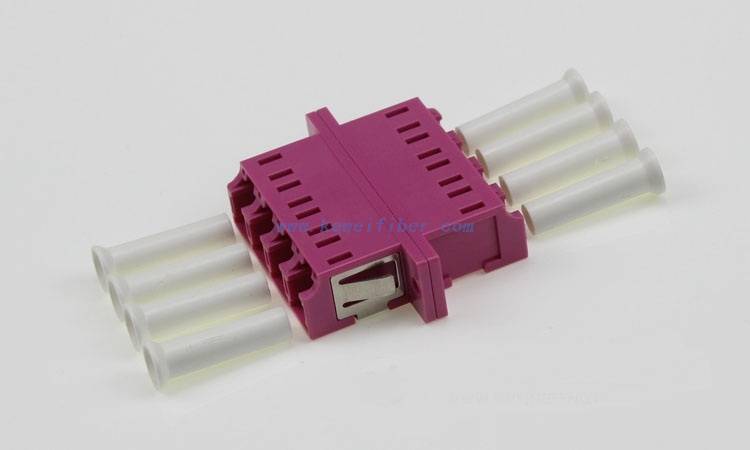

LC 4cores
Kewei
KWOM401
| Quantity: | |
|---|---|
Competitive Advantage:
Telcordia GR-326, IEC, TIA/EIA Standard compliant.
100% Optical performance inspection.
Low Insertion Loss.
RoHS Compliance.
Customized design and production.
Parts &Material
| Parts | Material | Remarks |
| Sleeve | Ceramic or PB |
|
| Housing | PC | Flammability UL94 V-0 |
| Dust cap | PVC | Flammability UL94 V-0 |
| Clip | stailess steel |
|
|
|
|
|
Optical Performance
|
| Premium Grade | Standard Grade |
| Insertion Loss | ≤0.1dB | ≤0.2dB |
| Durability | 1000 times | 1000 times |
Enviroment and Mechanical
| Properties | Test condition | Conformance | Test result |
| Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
| Mating Durability | 1000 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
| Impact | 1.5m, 8 drops | IEC61300-2-6 | ≤0.2dB |
| Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-12 | ≤0.2dB |
| Temperature Cycling | 40ºC to +75ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
| Temperature humidty cycling | 40ºC， 95%， 96Hr | IEC61300-2-21 | ≤0.2dB |
| Operating Temperature | -40ºC to +85ºC |
| ≤0.2dB |
| Storage Temperature | -40ºC to +85ºC |
| ≤0.2dB |
