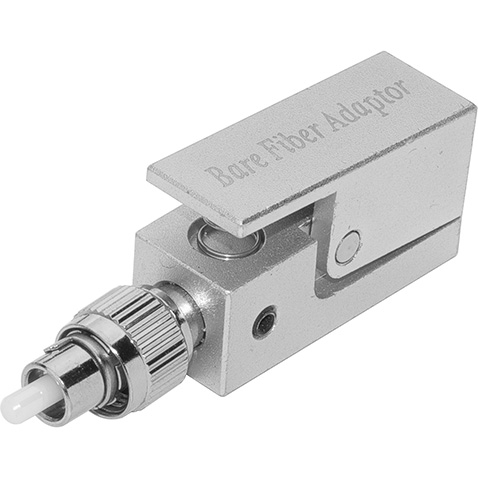

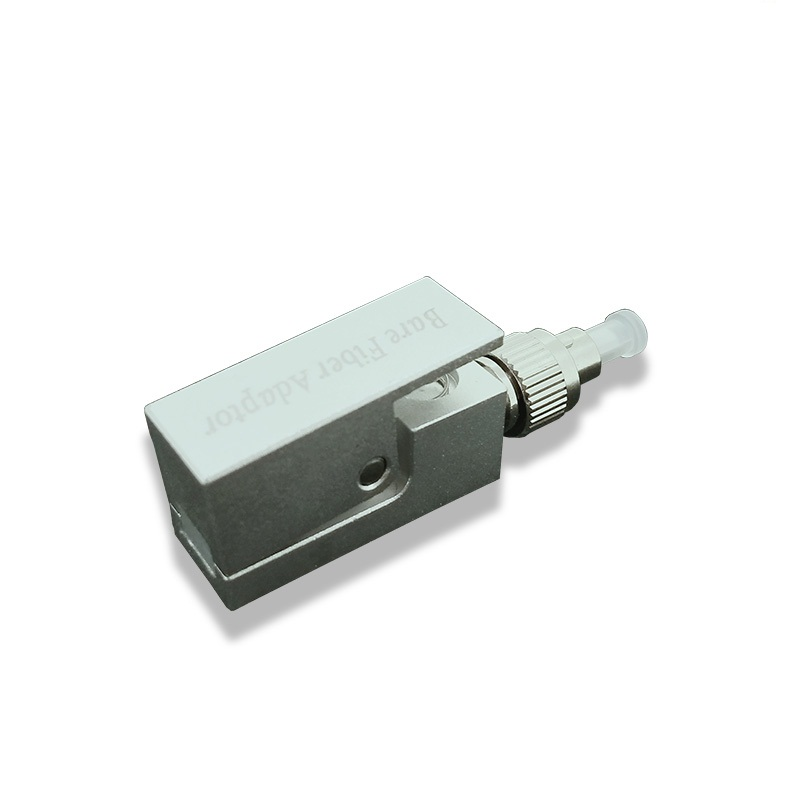

FC ST Metal Square Silver Type Bare Fiber Adaptor with SMA Used for OTDR Testing

Square type FC Bare Fiber Optic Adapter is used for emergency repairs of fiber optic cable and temporary fiber connection and
fiber optic cable fast test.
It can link bared optic and light source, testing equipment, light appearance, etc.
FC Bare Fiber Adapter is used for test appearance and temporary conjunction between fiber optics extensively (repair fiber optic
cable urgently). Such FC bare fiber optic adapters can square and round types optional.
  • fiber optic adapter

  • Kewei fiber

Quantity:
sharethis sharing button


Application



Telecommunication Networks
Local Area Networks (LANs)
Communication System












◉ Premise Installations
◉ Wide Area Networks (WANs)
◉ Video Transmission










 Connections Between Patchcords
 FTTX, CATV
 Connections Between Devices





Specification



parameter LC Adaptor
SM MM
PC UPC APC PC
Insertion loss ≤0.2dB ≤0.2dB ≤0.2dB ≤0.2dB
Alternationg loss ≤0.2dB
Repeatability ≤0.2dB
Durability The change of 1000 interpolation times is less than 0.2dB
Working temperature -40~85°C
Storage temperature -40~85°C
