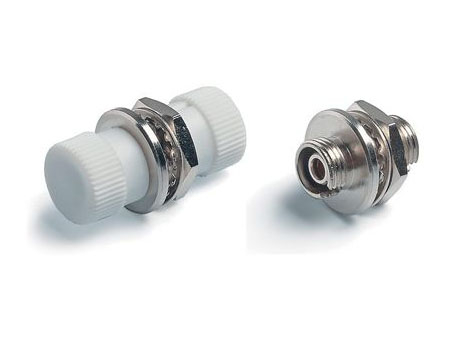

FC/PC SM Simplex round type adapter

FC/PC Fiber Optic Adapter for FTTH Solution , Bronze Body

Quantity:
  • 属性值

FC adapter has a metal thread connecting structure.





Features:

  1. Excellent Insertion Loss
  2. Good inerchangeability
  3. Accurate Size
  4. Environmentally Stable and Reliable
  5. Applicable standard: IEC 61754-13



Application:

  1. CATV System
  2. Equipment Test
  3. Local Area Networks
  4. Telecommunication Networks



Specification:



Type SC/FC/ST/LC/MU/MTRJ/MPO
Insertion Loss(dB) SM≤0.2dB, MM≤0.3dB
Repeatability(dB) ≤0.1dB
Mechanism Durability(500 cycles, dB) ≤0.2dB
Temperature Range -40°C-+85°C
Material of sleeve Zirconia or Bronze





Reliability testing:



Item Test Name Additional Insertion Loss Additional Return Loss
1 Mechanical durability <0.2dB <5dB
2 Repeatability <0.2dB <5dB
3 Lock strength <0.2dB <5dB
4 Low strength <0.2dB <5dB
5 High temperature <0.2dB <5dB
6 Steaming <0.2dB <5dB
7 Temperature cycle <0.2dB <5dB
8 Vibration <0.2dB <5dB
9 Drop <0.2dB <5dB
