144 cores distribution box MDF

KWGPX-144D is suitable for connection, distribution of many kinds of fiber connector. It is frequently used in host center or large capacity exchange room

Quantity:
  • 144cores
  • Kewei
  • KWGPX-144D

Feature

  1.    19"standard installation, adjustable position in forward and backward direction
  2.    Suitable for being installed in different kinds of optical distribution frame or cabinet
  3.    Compact aluminum body with electrostatic spraying surface, light structure and fine-looking appearance; cold rolled steel body is selectable

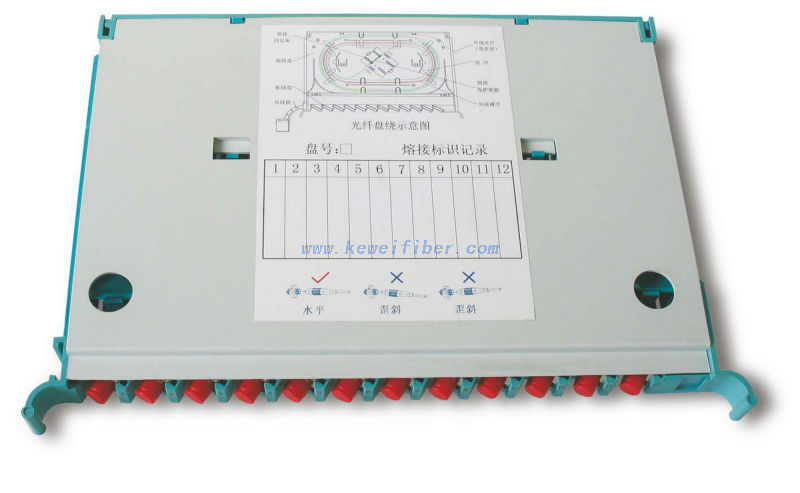

  4.    12 cores integrated splicing and distribution module make use of space efficiently. With double tray structure, pigtails have separated path with fiber cables.
  5.    FC and SC adapters can be mounted
  6.    Optical cable fixing and grounding kit is fit for different application, such as 19" standard cabinet, network cabinet

Dimension and Capacity

Type

Dimension

(mm)

Capacity (cores)

Equipped Height (U)

KWGPX-D12

H44×W482×D300

12

1

KWGPX -D24

H88×W482×D300

24

2

KWGPX-D48

H132×W482×D300

48

3

KWGPX-D72

H176×W482×D300

72

4

KWGPX-D96

H265×W482×D300

96

6

KWGPX-D144

H354×W482×D300

144
