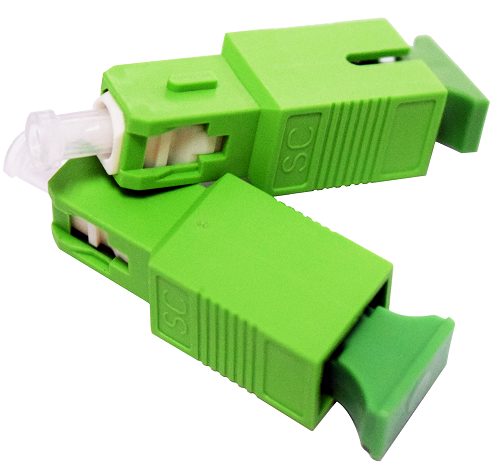

SC/APC reflector
Kewei fiber
Quantity: | |
---|---|
Characteristics
(1) High stability and reliability.
(2) Remote real-time detection.
(3) Low insertion loss.
(4) Easy connection for adapter structure.
(5) Compliant with Telcordia GR-326-CORE, Telcordia GR-1221-CORE.
(6) Compliant with RoHS.
Technical Parameter
Item | Parameter | Specification | Unit | Remarks | |
1 | Wavelength Range | Pass Band | 1260~1625 | nm | - |
Reflect Band | 1644.5~1655.5 | nm | - | ||
2 |
Pass Band |
IL | ≤0.8 | dB | @1260~1360 |
≤0.8 | dB | @1460~1600 | |||
≤1.0 | dB | @1600~1625 | |||
ORL | >35 | dB | @1260~1580 | ||
>30 | dB | @1580~1620 | |||
>20 | dB | @1620~1625 | |||
3 | Reflect Band | IL | >21 | dB | @1644.5~1655.5 |
ORL | ≤1.0 | dB | @1644.5~1655.5 | ||
4 | PDL | ≤0.4 | dB | @1260~1600 | |
5 | Ripple | ≤0.6 | dB | @1644.5~1655.5 | |
6 | TDL | ≤0.5 | dB | @1260~1600 | |
7 | Max Power Optical Handling | 27 | dBm | - | |
8 | Plug Time | >500 | Times | - | |
9 | Connector Mode | SC/APC | - | - | |
10 | Transmission Direction | Bidirectional |
Specification
The FBG reflector adopts a standard SC connector structure, and it is external dimensions as as bellow:
Work & Storage Conditions
Parameter | Specification | Unit |
Working Temp. | -25 ~ +65 | ℃ |
Working Humidity | 5 ~ 95 | %RH |
Storage Temp. | -40 ~ +85 | ℃ |
Working Humidity | 5 ~ 95 | %RH |
Characteristics
(1) High stability and reliability.
(2) Remote real-time detection.
(3) Low insertion loss.
(4) Easy connection for adapter structure.
(5) Compliant with Telcordia GR-326-CORE, Telcordia GR-1221-CORE.
(6) Compliant with RoHS.
Technical Parameter
Item | Parameter | Specification | Unit | Remarks | |
1 | Wavelength Range | Pass Band | 1260~1625 | nm | - |
Reflect Band | 1644.5~1655.5 | nm | - | ||
2 |
Pass Band |
IL | ≤0.8 | dB | @1260~1360 |
≤0.8 | dB | @1460~1600 | |||
≤1.0 | dB | @1600~1625 | |||
ORL | >35 | dB | @1260~1580 | ||
>30 | dB | @1580~1620 | |||
>20 | dB | @1620~1625 | |||
3 | Reflect Band | IL | >21 | dB | @1644.5~1655.5 |
ORL | ≤1.0 | dB | @1644.5~1655.5 | ||
4 | PDL | ≤0.4 | dB | @1260~1600 | |
5 | Ripple | ≤0.6 | dB | @1644.5~1655.5 | |
6 | TDL | ≤0.5 | dB | @1260~1600 | |
7 | Max Power Optical Handling | 27 | dBm | - | |
8 | Plug Time | >500 | Times | - | |
9 | Connector Mode | SC/APC | - | - | |
10 | Transmission Direction | Bidirectional |
Specification
The FBG reflector adopts a standard SC connector structure, and it is external dimensions as as bellow:
Work & Storage Conditions
Parameter | Specification | Unit |
Working Temp. | -25 ~ +65 | ℃ |
Working Humidity | 5 ~ 95 | %RH |
Storage Temp. | -40 ~ +85 | ℃ |
Working Humidity | 5 ~ 95 | %RH |
