Feature:
1. For aerial,buried,wall and pipe wall people use wells
2. Ring using a special material that can be repeatedly opened,re-use
3. Splice tray easy to use page design
4. Quick way to make use of open sealed maintenance easier
5. Valve and grounding devices can be installed
6. Advanced internal structure design
7. Easy to re-enter, it never requires re-entry tool it
Scope:

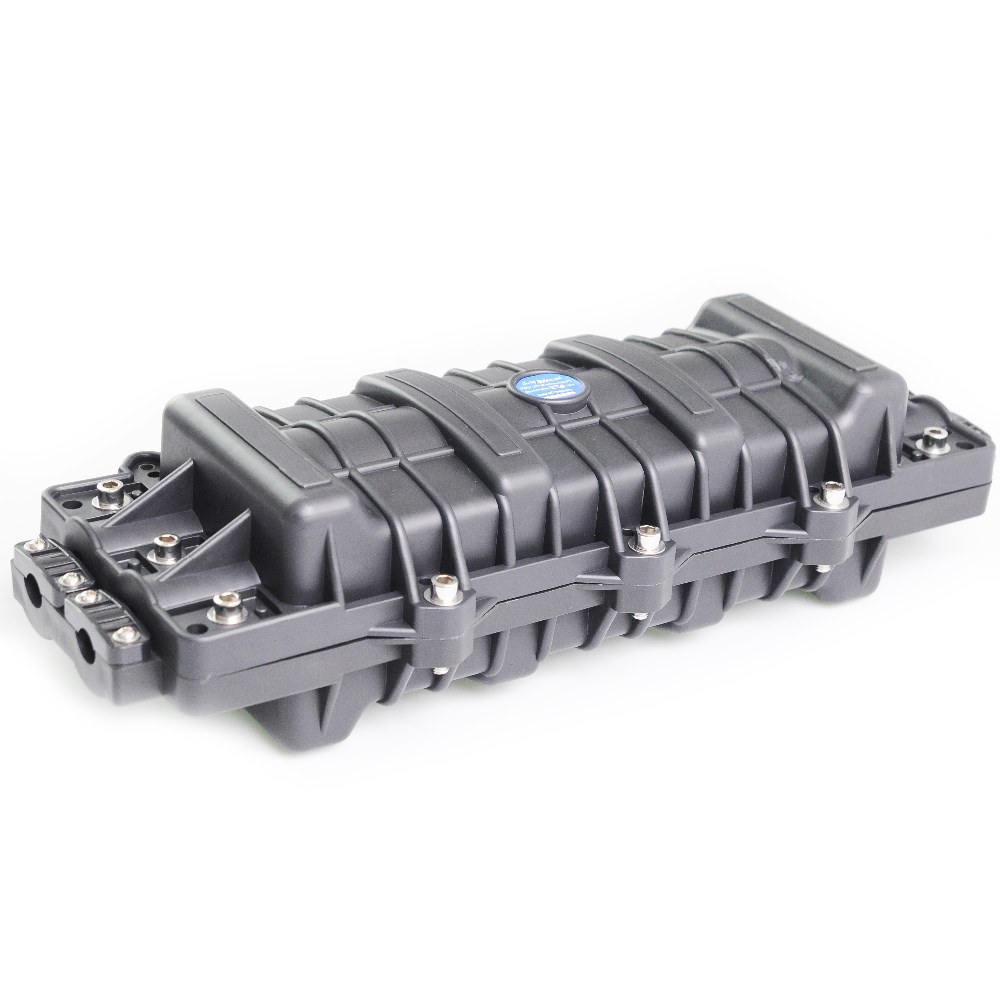

This Installation Manual suits for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.
The Scope of application is :aerial,underground,pipeline,handhole.The ambient temperature ranges from -40 to 65℃.
Remark:
Accessories for customers' selection: earthing deriving device, pressure testing valve, buffer tube for ribbon or bunchy fiber, internal metal stainless steel,etc.
Specifications:
Size: mm L×W×H | Cable ports | Cable Diameter | Max. Capacity | Core capacity per tray |
460×182×120 | 4 | φ20×4 | Bunchy:96 Ribbon:144 | Bunchy:12-96(cores) Ribbon:36-144(cores) |
Trays:
Model No. | Capacity | Size: mm L×W×H | |
FOST006 | Bunchy | single:12 cores double:24 cores | 160×106×10 |
Ribbon | 6 pieces |
Main Component | ||||
No. | Name of components | Quantity | Usage | Remarks |
1 | Housing(bottom) | 1 set | Protecting fiber cable splices in whole | Internal diameter:378*136(mm) |
2 | Housing(cover) | 1 set | Protecting fiber cable splices in whole | Internal diameter:378*136(mm) |
3 | Fiber optic splice tray(FOST) | Max 4 pieces (bunchy) or 4 pcs (ribbon) | Fixing heat shrinkable protective sleeve and holding fibers | Suitable for: Bunchy:12,24(cores) Ribbon:6(pieces) |
4 | Foundation | 1 set | Fixing reinforced core of fiber cable and fiber optic splice tray(FOST) | |
5 | Seal fitting | 1 set | Sealing between FOSC cover and FOSC bottom | |
6 | Port plug | 4 pieces | Sealing empty ports | |
7 | fixed bolt | 1sets | Fixing the housing | |
Main accessories and special tools | ||||
8 | Heat shrinkable protective sleeve | | Protecting fiber splices | Configuration as per capacity |
9 | Nylon tie | | Fixing fiber with protective coat | Configuration as per capacity |
10 | Insulation tape | 1 roll | Enlarging diameter of fiber cable for easy fixing | |
11 | Seal tape | 1 roll | Enlarging diameter of fiber cable which fits in with seal fitting | Configuration as per specification |
12 | Hanging hook | 1 set | For aerial use | |
13 | Earthing wire | 1 piece | Putting through between earthing device | |
14 | Abrasive cloth | 1 piece | Grind the fiber | |
15 | Labeling paper | 1 piece | Labeling fiber | |
16 | M8 Special wrench | 1 piece | Fixing bolts of housing and insert plate | |
17 | Instruction manual | 1 piece | standard installation | |
Optional accessories | ||||
No. | Name of components | Quantity | Usage | Remarks |
1 | Pressure testing valve | 1 set | After injecting air it is used for pressure testing and sealing testing | Configuration as per requirement |
2 | Earthing deriving device | 1 set | Deriving metallic components of fiber cable in the FOSC for earthing connection | Configuration as per requirement |
3 | Desiccant | 1 bag | Put into FOSC before sealing for desiccating air. | Configuration as per requirement |
4 | Buffer tube | decided by the customers | Hitched to fibers and fixed with FOST, managing buffer. | Configuration as per requirement |
Package:
No. | specification | Carton size(cm) | Capacity | N.W | Remarks |
1 | inner box | 47.5×19.5×12.7 | 1pcs | 2.4-2.6KG | Configuration as per weight |
2 | outer box | 61.5×48×41 | 9pcs | 21.6-23.4KG | Configuration as per weight |
